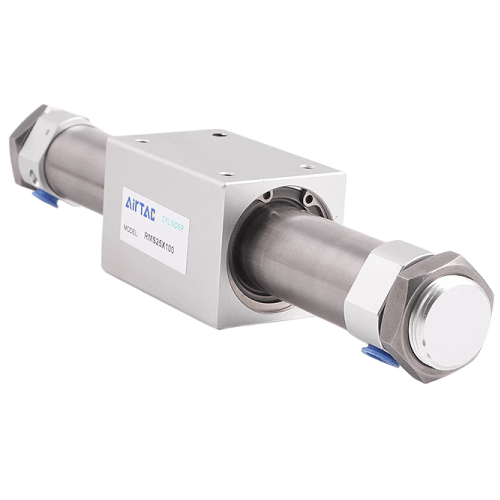

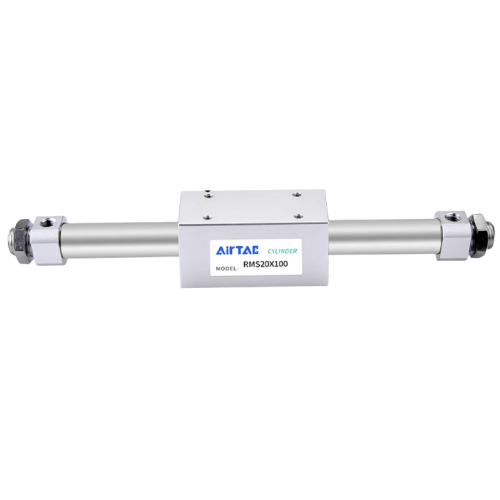

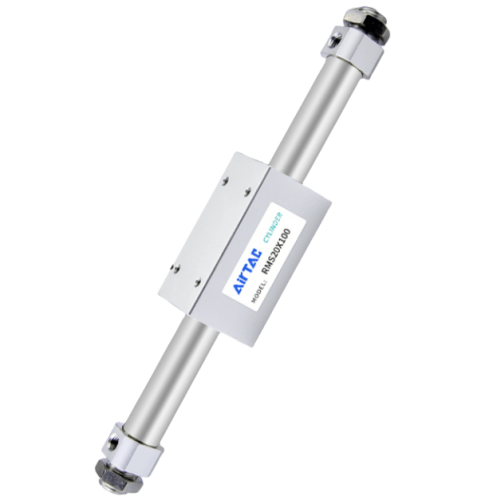

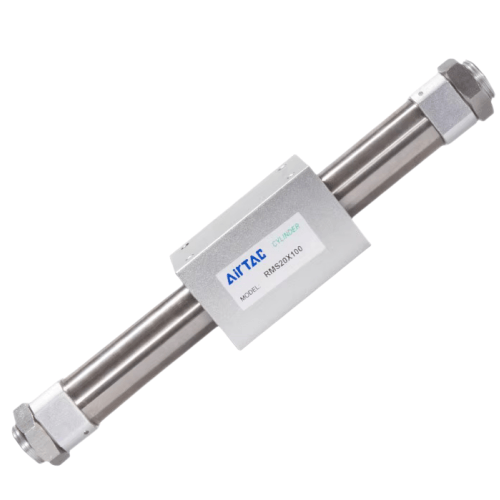

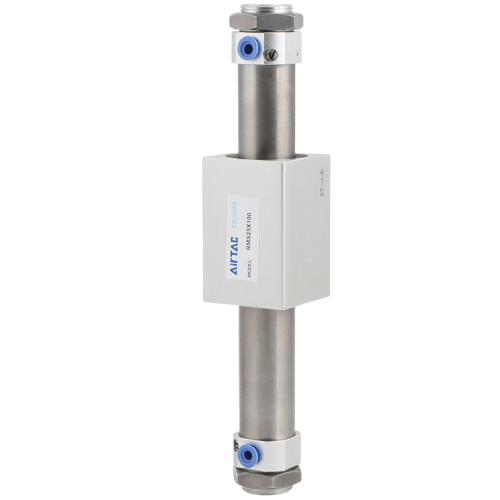

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X100
$245.16
Regular price
$252.66
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
RMS32X100
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Magnetic coupling rodless cylinder with no mechanical connection between piston and slider, offering excellent sealing performance;
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
Installation guidelines:
Maintain ≤0.1mm/m alignment tolerance during mounting. Use only clean, lubricated air (ISO 8573-1:2010 Class 2.4.2).
For vertical applications, install locking device at stroke ends. Maximum side load: 15N at center.
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X100 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMS32X100
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32mm
- Stroke: 100mm (±0.5mm tolerance)
- Operating pressure: 0.1–0.8 MPa
- Cushioning: Adjustable air cushion at both ends
- Temperature range: -20℃ to 80℃
- Mounting: Standard ISO mounting grooves (2x 8.2mm width)
- Port size: M5x0.8 (G1/8 optional)
- Coupling force: 60N (at 0.5MPa)
- Maximum speed: 1.5m/s
- Repeat accuracy: ±0.2mm
- Material: Aluminum alloy barrel, stainless steel piston
- Seal material: NBR (nitrile rubber)
- Weight: 2.45kg (without accessories)
- Dimensions: 300mm(L) × 48mm(W) × 48mm(H) (at mid-stroke)
- IP rating: IP54 (standard), IP67 with optional wiper seals
High-precision rodless cylinder utilizing non-contact magnetic coupling technology, eliminating external leakage risks. Features dual piston seals for enhanced load stability and integrated T-slot mounting for flexible installation. The anodized barrel surface resists corrosion in humid environments.
Typical Applications:
- High-speed pick-and-place systems in electronics assembly
- Precision positioning in semiconductor handling equipment
- Vertical lifting mechanisms for packaging lines
- Cleanroom automation with minimal particle generation
- Multi-axis Cartesian robot systems
Installation guidelines:
Maintain ≤0.1mm/m alignment tolerance during mounting. Use only clean, lubricated air (ISO 8573-1:2010 Class 2.4.2).
For vertical applications, install locking device at stroke ends. Maximum side load: 15N at center.
Service cycle: Relubricate every 500km of travel or 6 months. Replace magnetic coupler seals after 5,000km operation.
| Property | Property Value |
|---|---|
| sku | RMS32X100 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | 100mm |
