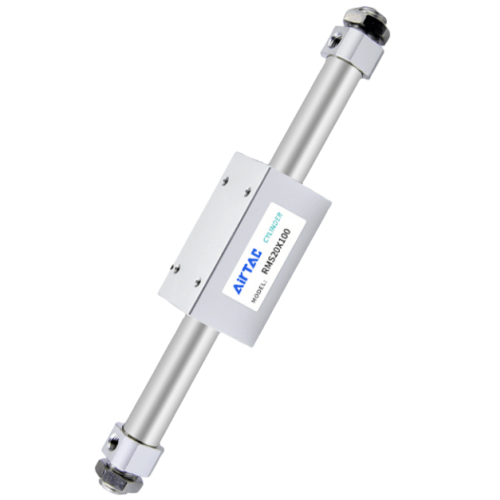

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X1110
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X1110 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMS32X1110
- Type: ISO 15524 compliant rodless cylinder (magnetic coupling)
- Bore size: 32mm
- Stroke: 1100mm (1100±1mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Operating medium: Dry air (ISO 8573-1:2010 Class 3.4.3)
- Temperature range: -20℃ to 80℃ (no freezing)
- Max piston speed: 0.1–1.5 m/s (cushioned)
- Mounting: Multiple options (horizontal/vertical, flange MSQTF32 or rail MSQTR32)
- Cushioning: Adjustable rubber buffers (both ends)
- Magnet type: Samarium cobalt (SmCo) rare-earth magnets
- Repeat positioning accuracy: ±0.5mm
- Port size: M5×0.8 (standard), optional NPT1/8
- Weight: 3.8kg (excluding mounting accessories)
- Dimensions: 1165mm(L) × 48mm(W) × 42mm(H) (at full extension)
- Slit band material: SUS304 stainless steel with PTFE coating
- IP rating: IP54 (standard), IP67 optional
High-precision rodless cylinder using non-contact magnetic coupling technology, eliminating external seals for zero leakage. Features dual-layer corrosion protection (chromium plating + anti-fingerprint coating) and integrated T-slot for sensor mounting. Requires 5μm filtered air with ISO VG32 lubricator oil (optional oil-free operation).
- High-speed pick-and-place systems in semiconductor handling
- Long-stroke material transfer in cleanroom environments
- Precision web tension control for printing machinery
- Automated glass panel inspection systems
- Linear motion in vacuum chamber load locks
Installation note:
Maintain 0.5mm/m alignment tolerance during rail mounting. Use only non-magnetic fasteners within 50mm of the carriage.
Perform initial lubrication with AirTAC PSE-2 grease (3cc per port) before operation.
| Property | Property Value |
|---|---|
| sku | RMS32X1110 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | 1110 mm |
