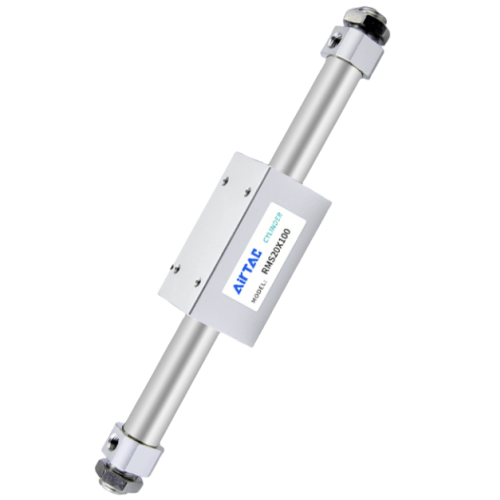

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X1200
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X1200 Magnetic Coupled Rodless Cylinder Specifications
- Model: RMS32X1200
- Type: Magnetic coupled rodless cylinder (non-rotating design)
- Bore size: Ø32mm
- Stroke length: 1200mm ±1mm tolerance
- Operating pressure: 0.1–0.8 MPa
- Max thrust: 628N @0.5MPa
- Piston speed: 50–1000mm/s
- Ambient temperature: -10℃ to 60℃
- Weight: ~4.8kg (excluding mounting accessories)
- Main dimensions: 1200mm(L) × 65mm(W) × 50mm(H)
- Mounting style: Dual linear guide rails with 4x M6 threaded holes
- Seal material: Polyurethane (PU) with wear-resistant ring
- Position detection: Built-in magnet for sensor mounting (NPN/PNP compatible)
- Protection rating: IP54 standard (IP67 optional)
- Lubrication: Pre-lubricated - requires ISO VG32 hydraulic oil for maintenance
High-precision rodless actuator with magnetic coupling technology, eliminating external seals for zero leakage risk. Features dual linear guides for enhanced moment resistance (lateral moment: 18N·m, vertical moment: 14N·m). The anodized aluminum construction ensures corrosion resistance in humid environments.
- Automated material handling systems requiring long strokes
- Precision glass cutting machinery
- Electronics assembly line positioning devices
- Packaging machine vertical lift mechanisms
- Automotive welding robot auxiliary axes
Installation guidelines:
Requires strict alignment (max 0.2mm/m parallelism tolerance).
Use C-shaped mounting brackets at both ends.
For full-stroke operation, maintain ambient temperature below 50℃.
Apply silicone-based grease monthly in high-cycle applications (>500k cycles/year).
| Property | Property Value |
|---|---|
| sku | RMS32X1200 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | 1120mm |
