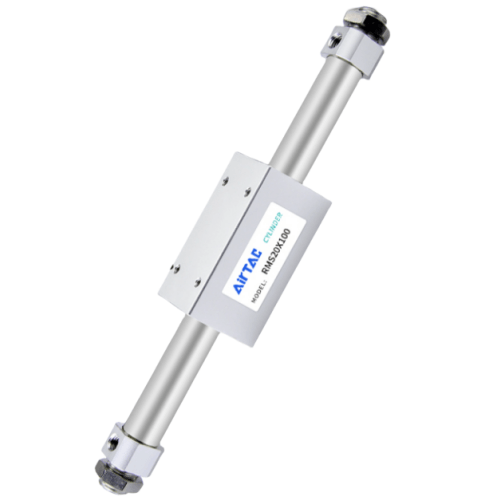

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X1300
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X1300 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMS32X1300
- Type: Magnetic coupling rodless cylinder (non-rotating design)
- Bore size: 32mm
- Stroke length: 1300mm
- Operating pressure: 0.1–0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushioning type: Adjustable pneumatic cushion (both ends)
- Seal material: NBR/PU hybrid seals
- Port size: M5x0.8 (standard), G1/8 optional
- Max speed: 0.1–1.5 m/s
- Load capacity: 250N lateral, 600N axial
- Repeat positioning accuracy: ±0.5mm
- Protection rating: IP54 (standard), IP67 optional
- Weight: 8.7kg (bare cylinder), 9.2kg with mounting brackets
- Dimensions: 1405mm(L) × 52mm(W) × 42mm(H)
High-precision rodless actuator with magnetic coupling technology eliminating external leakage points. Features anodized aluminum body with hardened stainless steel guide rails for heavy-duty cycles. Integrated T-slot mounting system allows multi-axis configurations. Requires 5μm filtered air and monthly lubrication (ISO VG32 oil recommended).
- Long-span material handling systems
- Automated CNC pallet changers
- Lithium battery production line automation
- Solar panel array positioning mechanisms
- Glass cutting machine linear drives
Installation note:
Maintain 0.05mm/m alignment tolerance during mounting. Use anti-vibration pads
for strokes >800mm. Magnetic field requires 50mm clearance from ferrous materials.
| Property | Property Value |
|---|---|
| sku | RMS32X1300 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | 1300 mm |
