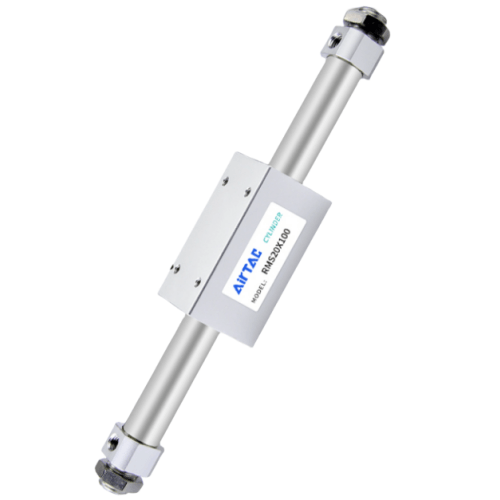

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X250
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X250 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMS32X250
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32mm
- Stroke: 250mm (standard), customizable up to 3000mm
- Operating pressure: 0.05–0.8 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–1000 mm/s
- Seal material: NBR (standard), optional FKM for high temp
- Mounting: Linear guide integrated, multiple bracket options
- Cushioning: Adjustable pneumatic cushion
- Repeat accuracy: ±0.5mm
- Weight: 2.8kg (excluding accessories)
- Dimensions: 480mm(L) × 68mm(W) × 68mm(H)
- Protection rating: IP65 (standard), IP67 optional
- Magnetic field strength: 80mT at 10mm distance
High-precision rodless cylinder using non-contact magnetic coupling technology, eliminating external leakage risks. Features integrated T-slot for sensor mounting and dual piston seals for extended service life. The stainless steel band shield prevents debris ingress while maintaining smooth sliding surface.
- High-speed pick-and-place automation systems
- Cleanroom material handling (semiconductor/LCD production)
- Packaging line transfer mechanisms
- Automated welding equipment positioning
- Pharmaceutical blister packaging machines
Installation guidelines:
Maintain 0.05mm/m alignment tolerance during mounting. Lubricate with ISO VG32 hydraulic oil before initial use.
Maximum side load: 45N (X-axis), 90N (Y-axis). Use shock absorbers for payloads over 8kg.
| Property | Property Value |
|---|---|
| sku | RMS32X250 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | <250MM> → <250mm> |
