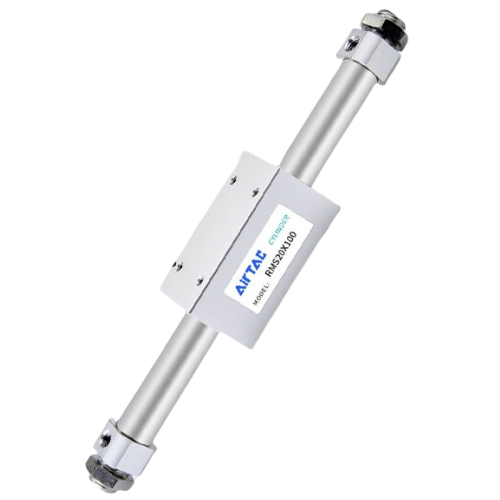

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF32X3000
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF32X3000 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMSF32X3000
- Type: ISO 15552 compliant magnetic coupling rodless cylinder
- Bore size: 32 mm
- Stroke length: 3000 mm (±0.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Max. thrust: 330 N @ 0.63 MPa
- Max. speed: 1.5 m/s (cushioned)
- Cushioning: Adjustable air cushion + shock absorber
- Mounting: ISO mounting profile with T-slot (22mm width)
- Port size: M5x0.8 (standard), G1/8 optional
- Seal material: Polyurethane (PU) with wear-resistant ring
- Temperature range: -20℃ to 80℃
- Protection rating: IP54 (standard), IP67 w/ optional wiper
- Weight: 9.8 kg/m (linear weight density)
- Dimensions:
- Body height: 63 mm
- Body width: 60 mm
- Total length: Stroke + 200 mm (end caps)
High-precision long-stroke rodless cylinder featuring contactless magnetic coupling technology eliminates external seals and prevents lubricant contamination. The dual-piston design with integrated linear guide achieves ±0.1mm repeatability. Optional Hall-effect sensors enable position feedback. Rated for 5,000 km service life at rated load.
- Automated pallet shuttle systems in AS/RS warehouses
- LCD panel handling robots with cleanroom requirements
- High-speed packaging line transfers (>2m/s acceleration)
- Precision CNC machine tool chip conveyors
- Solar cell production line positioning stages
Installation guidelines:
Requires parallelism tolerance ≤0.2mm/m between rail and cylinder axis.
Use alignment jigs during mounting. Lubricate every 500 km operation with ISO VG32 hydraulic oil.
Avoid applications with side-impact loads exceeding 200N.
For vertical mounting, always use mechanical brake module RMSF-BM2.
| Property | Property Value |
|---|---|
| sku | RMSF32X3000 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <32 mm> |
| Stroke | <3000mm> |
