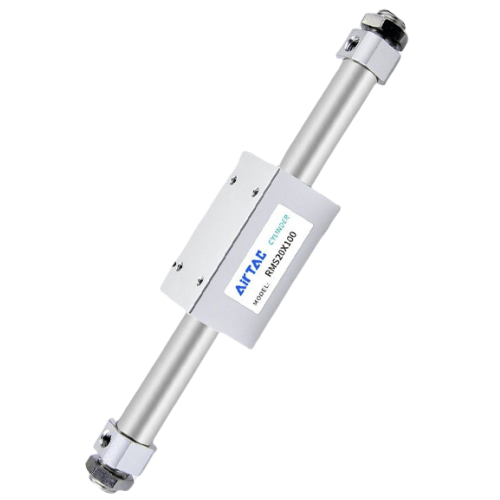

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF32X400LB
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF32X400LB Magnetic Coupled Rodless Cylinder Specifications
- Model: RMSF32X400LB
- Type: Magnetic coupled rodless cylinder (dual-axis design)
- Bore size: 32mm
- Stroke: 400mm
- Operating pressure: 0.1–0.8 MPa
- Temperature range: -10℃ to 70℃
- Seal material: Polyurethane (PU) with wear-resistant coating
- Lubrication: Non-lubricated (oil-free operation capable)
- Port size: M5x0.8 (standard), G1/8 optional
- Mounting options: Side-mount, front flange, or linear guide integrated
- Repeat positioning accuracy: ±0.2mm
- Max speed: 500–800 mm/s (load dependent)
- Protection rating: IP54 (standard dust/water resistance)
- Magnetic field strength: Class N35 NdFeB magnets
- Weight: 2.8 kg (excluding mounting accessories)
- Dimensions: 400mm(L) × 80mm(W) × 40mm(H) (stroke length included)
- End cushioning: Adjustable pneumatic cushioning
- Piston material: Anodized aluminum alloy
High-precision rodless cylinder utilizing magnetic coupling technology to eliminate external seals, ideal for cleanroom environments and long-stroke applications. Features dual-axis stabilization for improved moment load resistance and reduced internal bearing stress. The LB variant includes enhanced lateral mounting surfaces for rigid installation.
- Pick-and-place automation in semiconductor manufacturing
- Linear material handling in packaging lines
- Precision positioning in CNC tool changers
- Cleanroom medical device assembly systems
- High-cycle food processing equipment (stainless steel version available)
Installation note:
Maintain parallel alignment within 0.1mm/meter with guide rails. Use anti-vibration mounts
when operating above 600mm/s. Magnetic interference with sensitive electronics requires
50mm minimum clearance. Lubricate slider blocks every 500km of travel (use ISO VG32
equivalent grease).
| Property | Property Value |
|---|---|
| sku | RMSF32X400LB |
| Mounting Type | Foot Mount Bracket |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <32 mm> |
| Stroke | <400mm> |
