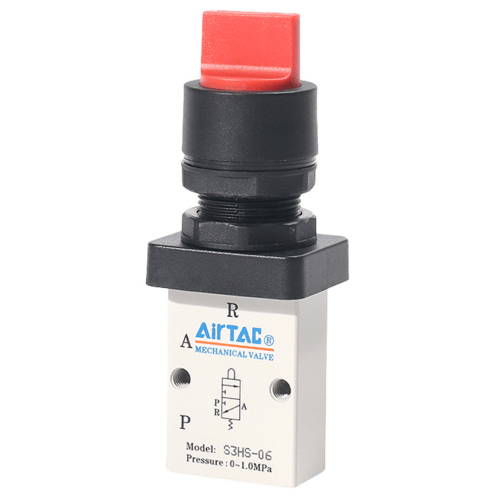

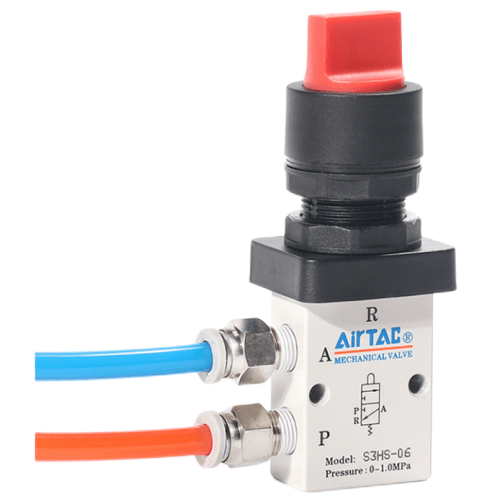

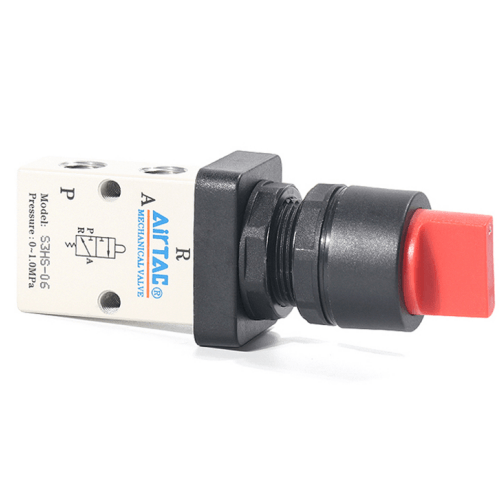

Airtac S3HS Selector Mechanical Valve S3HS06R
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS06R Selector Mechanical Valve Technical Details
- Model: S3HS06R (Manual Override Series)
- Valve type: 3-position selector (Push/Pull operation)
- Port configuration: 5 ports/3 positions
- Port size: G1/8 (BSPP) with 6mm tube adapters included
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 NL/min (ANR)
- Actuation force: 2.5N ±0.5N at lever end
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile) for oil resistance
- Temperature range: -10℃ to 80℃ (no ice formation)
- Weight: 218g ±5g (with fittings)
- Dimensions: 52mm(W) × 38mm(H) × 67mm(D)
- Mounting: Panel mount with M4 threaded holes
- Cycle life: 1,000,000 operations (ISO 9001 certified)
Manual override mechanical valve with positive detent positioning, designed for system debugging and emergency operation in automated lines. Features dual-color position indicators (green/red) and anti-vibration lock mechanism. Compatible with ISO 15407-1 standards for industrial environments.
- Production line emergency stop systems
- Robotic arm tooling changeover stations
- Plastic injection molding machine safety overrides
- Pneumatic conveyor system manual controls
- Test bench pressure regulation
Installation guidelines:
Mount on vibration-free surfaces using shock-absorbing washers.
Lubricate pivot points every 2,000 cycles with ISO VG32-grade oil.
Maintain 70% maximum rated pressure during initial commissioning.
| Property | Property Value |
|---|---|
| sku | S3HS06R |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
