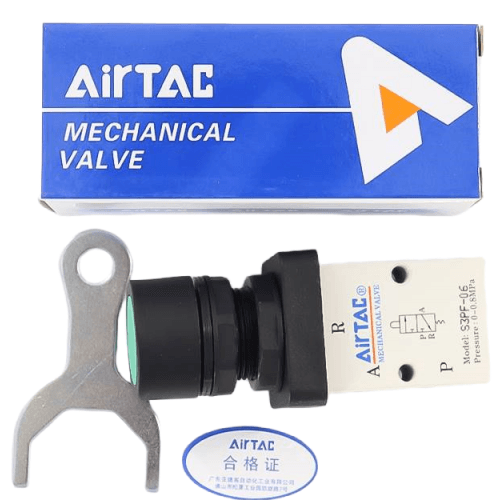

Airtac S3PF Flat Button Type Mechanical Valve S3PF05-P11A
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3PF05-P11A
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series require external actuation force for valve switching, making them suitable for position detection or limit switch applications;
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
Installation note:
Requires 16mm panel cutout. Apply thread sealant to collar mounting threads.
Maximum recommended panel thickness: 5mm. For vertical mounting only.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

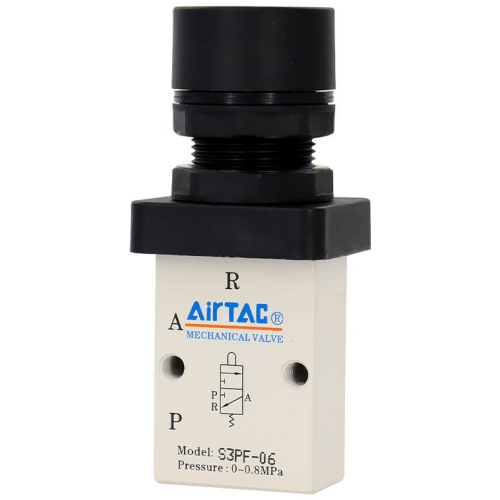

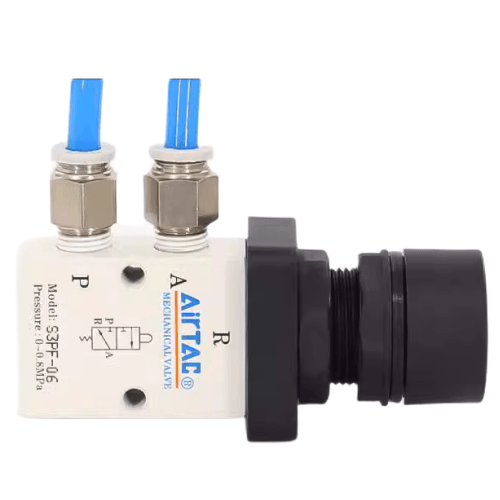

AirTAC S3PF05-P11A Flat-Head Button Mechanical Valve Specifications
- Model: S3PF05-P11A
- Type: Push-button operated 3/2-way mechanical valve (normally closed)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 350 NL/min (at 0.5 MPa)
- Actuation force: 2.5–3.5 N
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Operating temperature: -5℃ to 80℃ (with NBR seals)
- Mounting style: Panel mount with M18×1.5 threaded collar
- Protection rating: IP40 (dust protected)
- Weight: 85g ±2g
- Dimensions: 38mm(D) × 54mm(H) × 28mm(W)
- Button travel: 3mm with ±0.3mm tolerance
- Cycle life: ≥500,000 operations
Robust manual override valve featuring tactile feedback and positive lock mechanism. The flat-head design prevents accidental actuation while allowing glove-friendly operation. Includes built-in silencer and dust cover. Compatible with ISO 15407-1 standards for pneumatic valves.
Typical Applications:
- Manual override in automated production lines
- Emergency stop system bypass controls
- Pneumatic fixture locking mechanisms
- Training simulators for industrial equipment
- Mobile hydraulic service units
Installation note:
Requires 16mm panel cutout. Apply thread sealant to collar mounting threads.
Maximum recommended panel thickness: 5mm. For vertical mounting only.
Maintenance:
Lubricate button shaft with silicone grease (ISO VG 1) every 50,000 cycles.
Replace NBR seals after 3 years or 300,000 cycles (whichever comes first).
| Property | Property Value |
|---|---|
| sku | S3PF05-P11A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
