Airtac S3PF Flat Button Type Mechanical Valve S3PF06BG
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

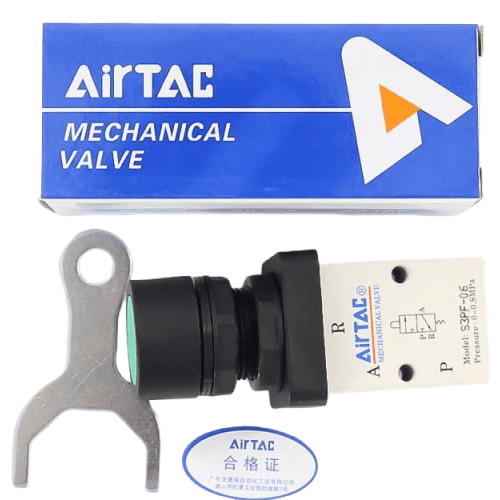

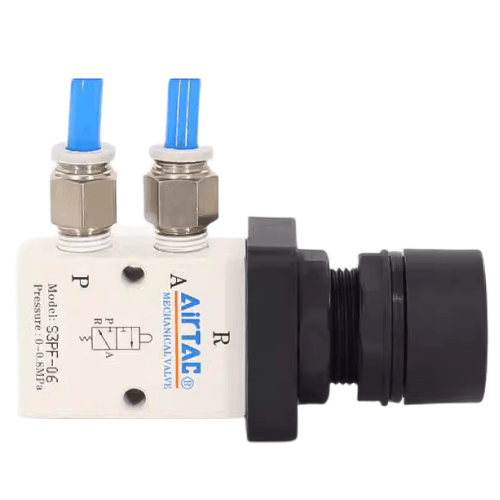

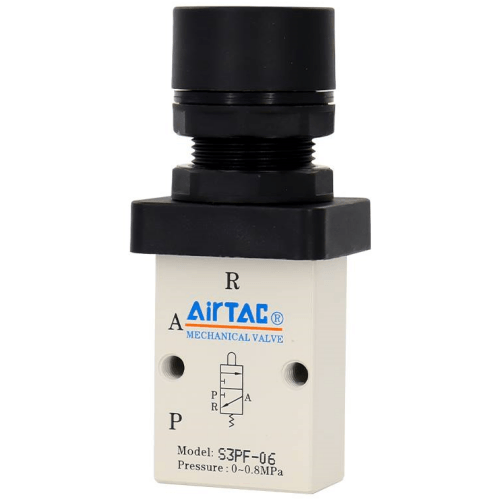

AirTAC S3PF Flat Head Push Button Mechanical Valve S3PF06BG Technical Details
- Model: S3PF06BG
- Type: 3/2-way normally closed manual reset valve
- Port size: PT1/8 (G1/8 equivalent)
- Operating pressure range: 0.1-0.8 MPa
- Operating method: Mechanical push button with lockable position
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Flow coefficient (Cv): 0.15
- Installation: Panel mount or bracket mount
- Weight: 122g ±2%
- Dimensions: 30mm(W) × 30mm(D) × 30mm(H)
- Actuation force: 3.5-4.5N
- Protection rating: IP65 (dust-tight & water jet resistant)
- Reset type: Manual twist release mechanism
- Port thread depth: 9mm engagement length
Robust mechanical valve featuring a low-profile design with positive tactile feedback, engineered for emergency stop systems and manual override applications. The chrome-plated brass construction ensures corrosion resistance in humid environments, while the recessed button prevents accidental activation. Requires 5-7μm filtered compressed air with oil mist lubrication recommended.
- Safety interlocks in automated production lines
- Manual pneumatic system override stations
- Emergency stop circuits for CNC machinery
- Training simulators for industrial equipment
- Maintenance lockout/tagout systems
Installation guidelines:
Mount with M5×12mm screws (max torque 1.2N·m). Ensure button travel path remains unobstructed.
Perform monthly lubrication of rotating collar with silicone grease (ASGB-02 specification).
Critical note:
Not suitable for vacuum applications. Always install downstream of pressure regulator.
Maximum cycle rate: 1 operation per 2 seconds to prevent seal wear.
| Property | Property Value |
|---|---|
| sku | S3PF06BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
