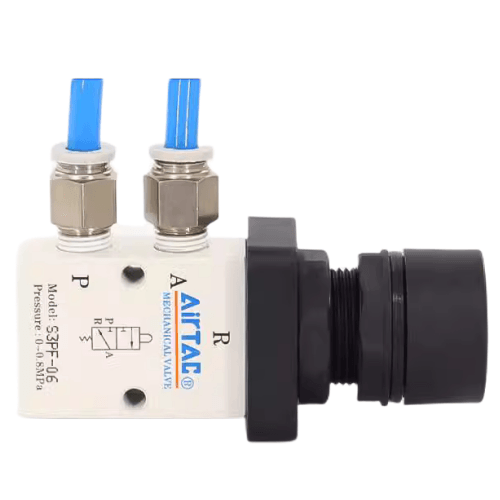

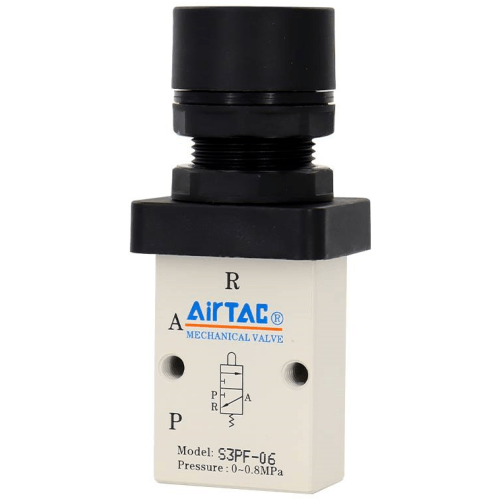

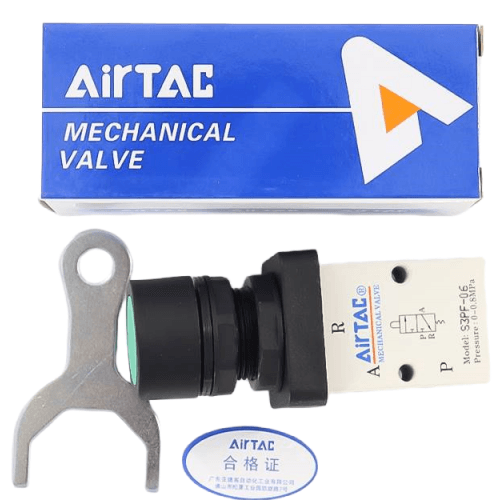

Airtac S3PF Flat Button Type Mechanical Valve S3PF08G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF Flat-Head Push Button Mechanical Valve S3PF08G Specifications
- Model: S3PF08G
- Type: 3/2-position normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.15-0.8 MPa (21.7-116 PSI)
- Temperature range: -5℃ to 60℃ (23℉ to 140℉)
- Seal material: Oil-resistant NBR (Nitrile rubber)
- Mounting style: Panel mounting (front installation)
- Button type: Flat-head mushroom emergency stop design
- Actuation force: 30-50N (manual press operation)
- Mechanical life: ≥500,000 cycles
- Protection rating: IP65 (dust-tight and water jet resistant)
- Weight: 180g ±5% (including mounting hardware)
- Dimensions: 34mm(W) × 34mm(D) × 42mm(H)
Manual reset safety valve with positive break NC mechanism, featuring a low-profile 16mm diameter yellow flat actuator head for emergency stop applications. The zinc alloy body with chrome-plated brass core ensures corrosion resistance in humid environments. Requires manual twist-release after activation.
- Emergency stop circuits in injection molding machines
- Safety interlocks for automated production lines
- Press brake machine two-hand control systems
- Robotic cell access door safety switches
- Packaging equipment jam recovery systems
Installation requirements:
Mount within 45° of vertical plane with minimum 25mm clearance around button.
Use M4 screws (not included) for panel fixation. Test monthly for positive
snap-action return. Lubricate pivot points with silicone grease annually.
| Property | Property Value |
|---|---|
| sku | S3PF08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
