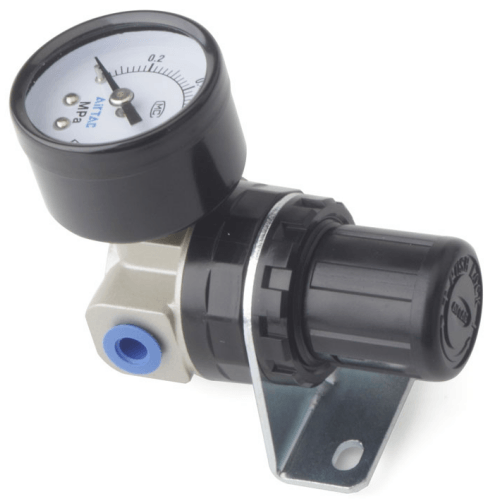

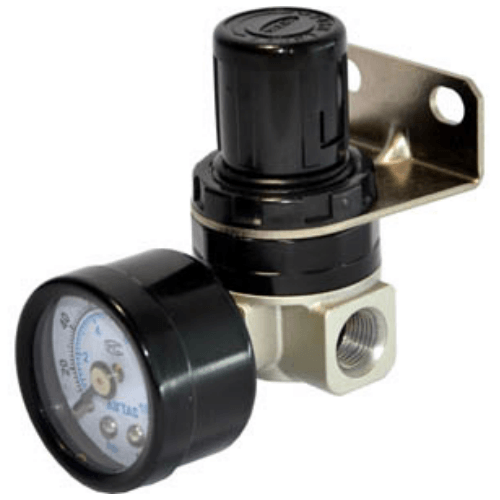

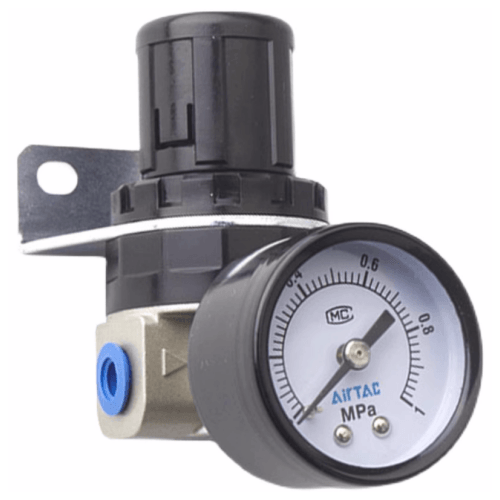

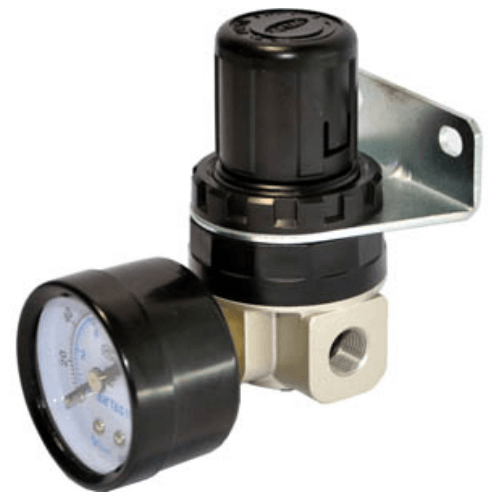

Airtac SDR Pressure Regulator SDR10006LJ1
2. Wide pressure regulation range including standard and low-pressure variants. Maintains stable output pressure, ideal for applications with moderate pressure requirements prioritizing cost-efficiency;
3. Unitized mounting design enables flexible and simplified installation.
Category: Pressure Regulators, Brand: AirTAC, Series: SDR
AirTAC SDR10006LJ1 Pressure Regulator Specifications
- Model: SDR10006LJ1
- Type: Precision air pressure regulator with gauge
- Port size: PT1/4 (BSPP thread)
- Pressure range: 0.05–0.85 MPa
- Max flow rate: 1,200 L/min (ANR)
- Operating temperature: 5℃ to 60℃ (no freezing)
- Housing material: Die-cast aluminum alloy (anodized)
- Diaphragm: High-elasticity NBR rubber
- Weight: 580g ±2%
- Dimensions: 98mm(H) × 52mm(W) × 83mm(D)
- Pressure gauge: 40mm dial, 0-1.0 MPa scale
- Adjustment knob: Anti-slip rubber with lockable design
- Filter rating: 5μm built-in (replaceable element)
Industrial-grade pressure regulator featuring dual-stage filtration and precision pressure stabilization. The corrosion-resistant construction includes a shock-resistant gauge with ±2% accuracy and a zero-leakage poppet valve. Designed for systems requiring stable pressure output under fluctuating loads.
- Pneumatic conveyor tension control
- CNC machine tool air circuits
- Automated assembly line actuators
- Plastic injection molding machines
- Semiconductor manufacturing equipment
Installation protocol:
Mount vertically with arrow aligned to airflow direction. Always install downstream of
lubricators. For pulsation reduction, maintain 10x port diameter straight pipe upstream.
Drain condensate weekly via bottom screw.
| Property | Property Value |
|---|---|
| sku | SDR10006LJ1 |
| Port Size | PT1/8 |
