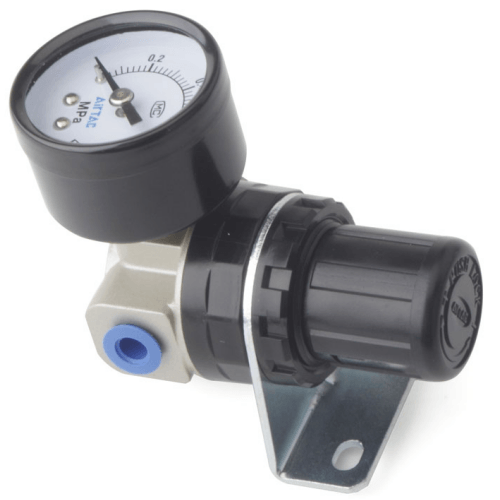

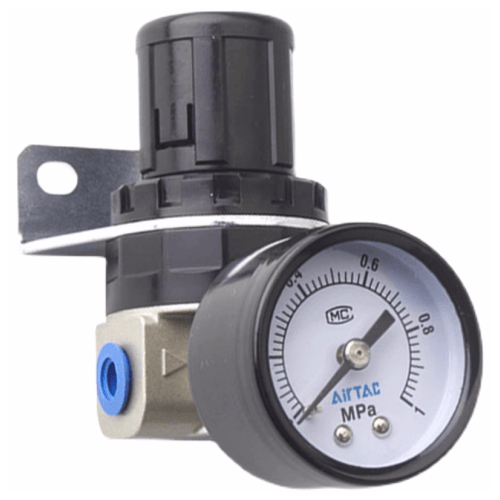

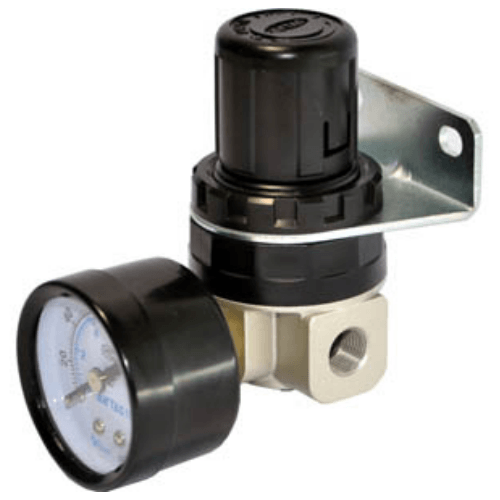

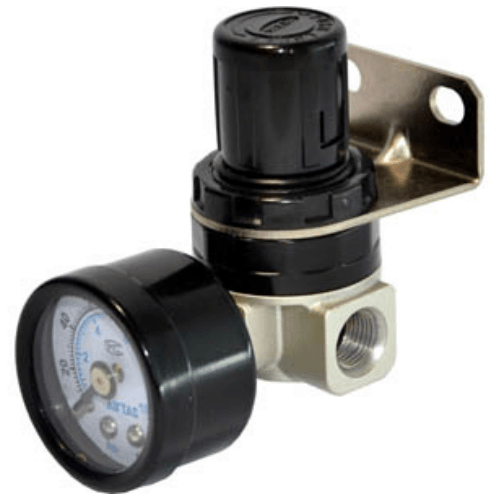

Airtac SDR Pressure Regulator SDR100M5J1
2. Wide pressure regulation range including standard and low-pressure variants. Maintains stable output pressure, ideal for applications with moderate pressure requirements prioritizing cost-efficiency;
3. Unitized mounting design enables flexible and simplified installation.
Category: Pressure Regulators, Brand: AirTAC, Series: SDR
AirTAC SDR100M5J1 Pressure Regulator Technical Specifications
- Model: SDR100M5J1
- Type: Precision pressure-reducing valve with built-in pressure gauge
- Port size: PT1/2 (G1/2 optional)
- Operating pressure range: 0.05–0.85 MPa
- Maximum flow rate: 3,500 L/min (ANR)
- Pressure gauge range: 0–1.0 MPa (accuracy class 2.5)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Body material: Die-cast aluminum alloy (anodized finish)
- Diaphragm material: NBR with fiber reinforcement
- Weight: ~450g (excluding accessories)
- Dimensions: 98mm(L) × 55mm(W) × 85mm(H)
- Lockable knob: Yes (quarter-turn locking mechanism)
- Pressure regulation sensitivity: ±0.01 MPa
- Mounting orientation: Vertical (±15° tolerance)
Industrial-grade pressure regulator featuring dual-chamber design for stable output under fluctuating input pressures. The integrated dampened gauge with anti-vibration design ensures accurate readings in high-vibration environments. Includes a tamper-proof adjustment knob with tactile feedback for precise control.
- Centralized pneumatic systems in automotive assembly lines
- Plastic injection molding machine pressure control
- Packaging machinery pressure stabilization
- Industrial robot end-effector pneumatic circuits
- Semiconductor manufacturing equipment
Installation guidelines:
Install downstream of main filter (5μm or finer). For pulsation-sensitive applications,
maintain minimum 300mm straight tubing downstream. Lubricated air requires monthly
diaphragm inspection. Never exceed 0.9 MPa during pressure adjustments.
