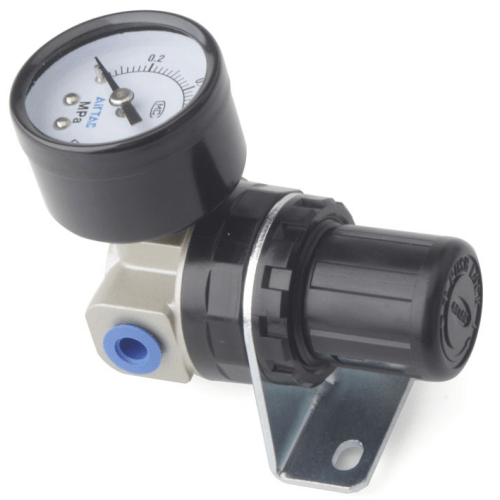

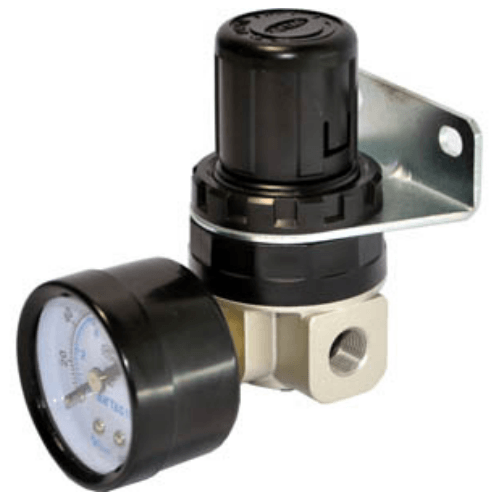

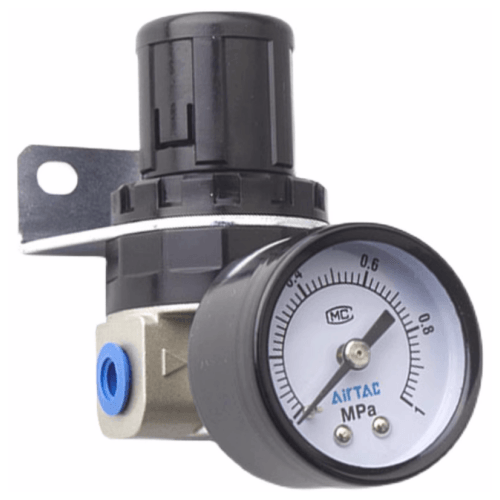

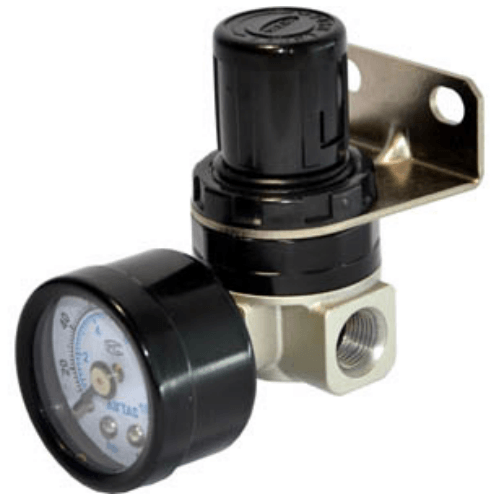

Airtac SDR Pressure Regulator SDR100M5N
2. Wide pressure regulation range including standard and low-pressure variants. Maintains stable output pressure, ideal for applications with moderate pressure requirements prioritizing cost-efficiency;
3. Unitized mounting design enables flexible and simplified installation.
Category: Pressure Regulators, Brand: AirTAC, Series: SDR
AirTAC SDR100M5N Precision Pressure Regulator Specifications
- Model: SDR100M5N (Standard Duty Regulator Series)
- Type: Pilot-operated diaphragm pressure regulator
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.05–0.95 MPa
- Pressure regulation range: 0.05–0.85 MPa
- Max flow capacity: 1,500 NL/min (ANR)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Body material: Aluminum alloy (anodized finish)
- Diaphragm material: NBR (Nitrile rubber)
- Mounting orientation: Vertical ±15° recommended
- Weight: 0.48 kg (1.06 lbs)
- Dimensions: 76mm(L) × 50mm(W) × 90mm(H)
- Relief mechanism: Built-in overpressure safety vent
- Pressure gauge port: M5 threaded (optional gauge accessory)
Industrial-grade pressure regulator featuring dual-stage filtration (40μm mesh + sintered bronze filter) and zero-leakage poppet design. The ergonomic T-handle allows single-finger adjustment with ±2% pressure stability. Compatible with ISO 8573-1:2010 Class 4 compressed air standards. Requires upstream lubrication for optimal performance in high-cycle applications.
- Pneumatic conveyor tension control systems
- Injection molding machine clamping force regulation
- CNC machine tool air pressure stabilization
- Automotive assembly line torque tool feeds
- Food packaging air knife pressure management
Maintenance protocol:
Perform monthly diaphragm inspection via test port. Replace filter element every
2,000 operational hours. Always depressurize system before adjusting set pressure.
