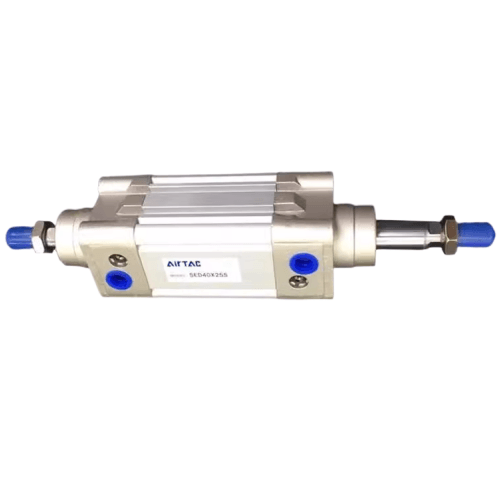

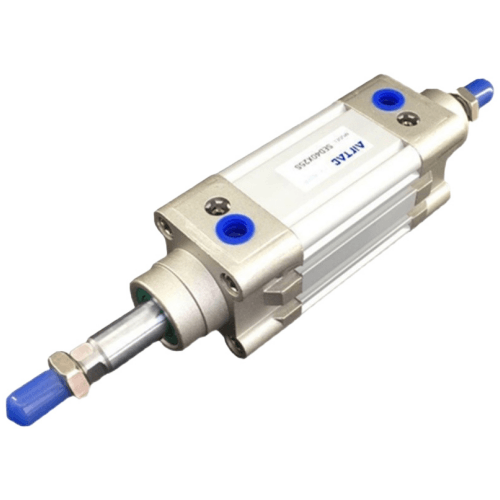

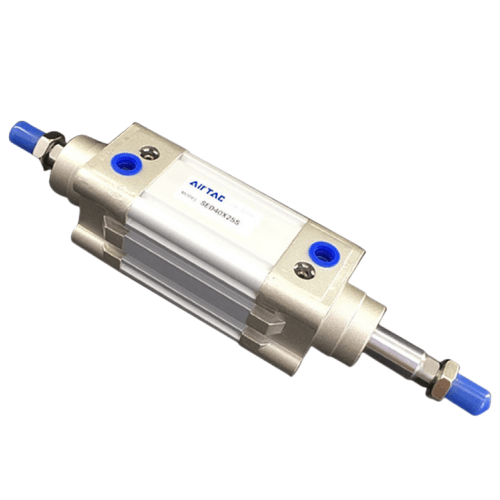

Airtac SED Double Rod Cylinder SED125X270
$377.56
Regular price
$385.06
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SED125X270
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、ISO 15552 & VDMA 24562 compliant standard cylinders;
2、Piston sealing features a custom-shaped bidirectional sealing structure with compact dimensions and integrated oil reservoir function;
3、Square extruded aluminum tubing construction without tie rods, enhanced by corrosion-resistant anodized finish;
4、Smooth and precise cushioning adjustment mechanism;
5、Comprehensive range of cylinder sizes and mounting accessories for flexible system integration;
6、High-temperature resistant sealing materials enable operation in 0~150°C environments.
Category: Double-Axis Cylinders, Brand: AirTAC, Series: SED Series
Installation guidelines:
Align within 0.2mm perpendicular tolerance during mounting.
Use regulated lubrication (ISO VG32) for optimal seal life.
Allow 50mm clearance behind rod ends for maintenance access.
2、Piston sealing features a custom-shaped bidirectional sealing structure with compact dimensions and integrated oil reservoir function;
3、Square extruded aluminum tubing construction without tie rods, enhanced by corrosion-resistant anodized finish;
4、Smooth and precise cushioning adjustment mechanism;
5、Comprehensive range of cylinder sizes and mounting accessories for flexible system integration;
6、High-temperature resistant sealing materials enable operation in 0~150°C environments.
Category: Double-Axis Cylinders, Brand: AirTAC, Series: SED Series
AirTAC SED125X270 Dual-Rod Cylinder Technical Details
- Model: SED125X270
- Type: Double-rod double-acting cylinder
- Bore size: Ø125mm
- Stroke: 270mm (adjustable cushion)
- Operating pressure: 0.1–0.9 MPa
- Port thread: G1/2 (NPT1/2 optional)
- Piston rod material: Chrome-plated carbon steel
- Cushion type: Adjustable air cushion (both ends)
- Ambient temperature: -20℃ to +80℃
- Seal material: Nitrile rubber (NBR) + Polyurethane (PU)
- Weight: 15.8kg ±2% (without accessories)
- Dimensions: 650mm(L) × 140mm(W) × 140mm(H)
- Rod diameter: Ø32mm (dual rods)
- Maximum speed: 500mm/s
- Mounting options: MF1/MF2 flange, FC foot mounting
- ISO standard: 15552 compliant
High-rigidity dual-rod cylinder designed for precision linear motion systems requiring exceptional moment resistance. Features symmetrical force distribution through parallel rods and integrated shock absorption. Optional magnetic piston version (SED125X270-M9) for position feedback.
Industrial Applications:
- Automated material handling systems
- Press brake tool positioning
- Glass cutting machinery
- Automotive welding fixtures
- Paper converting equipment
- Heavy-duty clamping devices
Installation guidelines:
Align within 0.2mm perpendicular tolerance during mounting.
Use regulated lubrication (ISO VG32) for optimal seal life.
Allow 50mm clearance behind rod ends for maintenance access.
| Property | Property Value |
|---|---|
| sku | SED125X270 |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT 1/2 |
| Piston Rod Material | Medium Carbon Steel |
| Magnet | Non-magnetic |
| Bore Diameter | 125mm |
| Stroke | 270mm |
