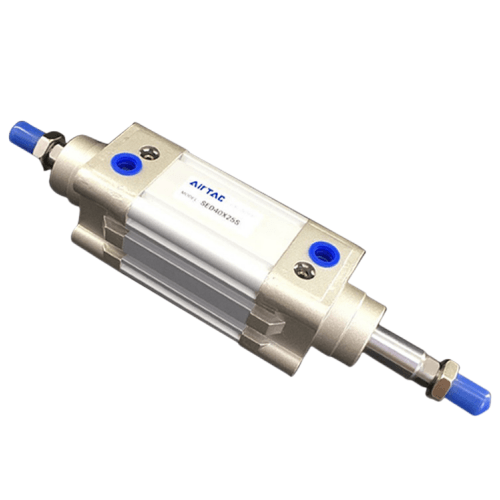

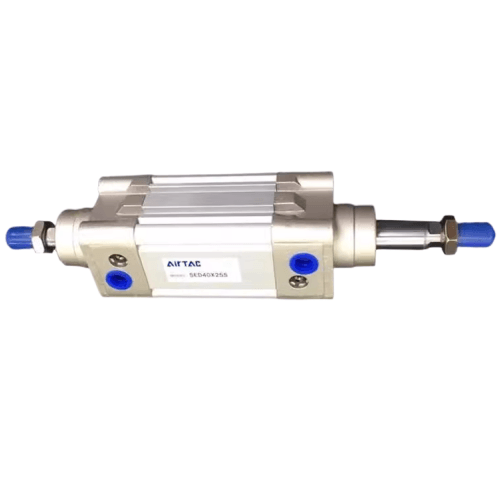

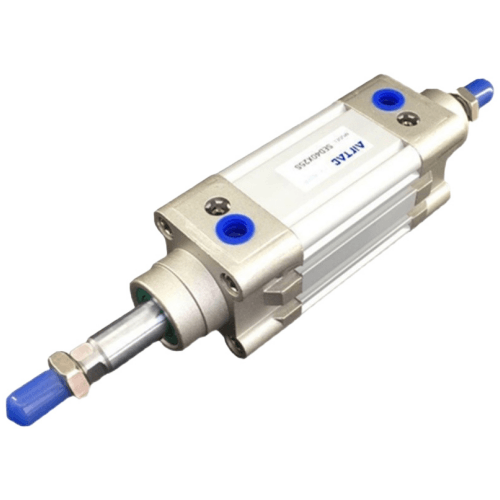

Airtac SED Double Rod Cylinder SED125X900
2、Piston sealing features a custom-shaped bidirectional sealing structure with compact dimensions and integrated oil reservoir function;
3、Square extruded aluminum tubing construction without tie rods, enhanced by corrosion-resistant anodized finish;
4、Smooth and precise cushioning adjustment mechanism;
5、Comprehensive range of cylinder sizes and mounting accessories for flexible system integration;
6、High-temperature resistant sealing materials enable operation in 0~150°C environments.
Category: Double-Axis Cylinders, Brand: AirTAC, Series: SED Series
AirTAC SED125X900 Dual Rod Cylinder Specifications
- Model: SED125X900
- Type: ISO 6432 compliant dual rod cylinder
- Bore size: Ø125 mm
- Stroke: 900 mm (customizable 25-2000mm)
- Operating pressure: 0.05-1.0 MPa
- Cushion type: Adjustable air cushion (both ends)
- Mounting style: Side or front flange (NF1/NF3 options)
- Port size: G1/2 (BSPP thread)
- Piston rod material: Hard chrome-plated SCM435 steel
- Seal material: NBR + PU hybrid seals
- Temperature range: -20℃ to 80℃
- Protection rating: IP67 (wipers included)
- Weight: 9.8 kg (bare cylinder), 12.3 kg (with standard accessories)
- Dimensions: 1080mm(L) × 150mm(W) × 175mm(H) (including rods)
High-rigidity dual piston rod cylinder engineered for precision linear motion in heavy-load applications. Features symmetrical force distribution with twin chrome rods (Ø32mm each) and anti-rotation design. The aluminum alloy barrel (6063-T5) with hard anodized finish ensures corrosion resistance in harsh environments. Includes magnetic piston for sensor compatibility.
- Automated press brake tool positioning systems
- Steel coil handling equipment
- Plastic injection molding machine ejectors
- Precision glass cutting platforms
- Automotive welding fixture clamping
Installation note:
Maintain 0.1-0.3mm/m alignment tolerance during mounting. Use M12x1.5 mounting bolts (Grade 8.8 or higher).
Lubricate with ISO VG32 hydraulic oil during initial commissioning. Avoid side loads exceeding 200N.
| Property | Property Value |
|---|---|
| sku | SED125X900 |
| Seal Material | Polyurethane |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT 1/2 |
| Piston Rod Material | Medium Carbon Steel |
| Magnet | Non-magnetic |
| Bore Diameter | 125mm |
| Stroke | <900mm> |
