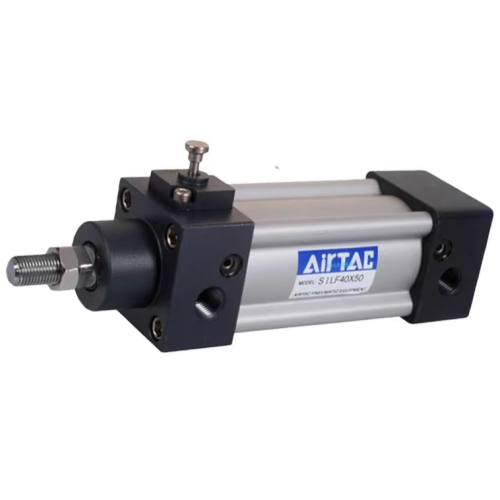

Airtac SILF Front Locking Air Cylinder SILF125X600
$474.34
Regular price
$481.84
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SILF125X600
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Locking cylinders are categorized into two configurations: Front Cover Locking Type and Rear Cover Locking Type.
2. Unlocking methods: Featuring automatic and manual unlocking operation modes.
Category: Locking Cylinders , Brand: AIRTAC , Series: SILF
Installation protocol:
Locking mechanism requires 0.3MPa minimum air pressure for disengagement.
Always engage manual override during maintenance using the hex key slot (8mm Allen wrench).
2. Unlocking methods: Featuring automatic and manual unlocking operation modes.
Category: Locking Cylinders , Brand: AIRTAC , Series: SILF
AirTAC SILF125X600 Front Lock Cylinder Specifications
- Model: SILF125X600
- Type: Double-acting cylinder with mechanical front lock
- Bore size: 125mm
- Stroke: 600mm
- Operating pressure: 0.05–1.0 MPa
- Locking force: 3,500N (at 0.5MPa)
- Port size: G1/2 (ISO 228 standard)
- Cushioning: Adjustable hydraulic buffer
- Temperature range: -10℃ to 80℃
- Rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: NBR + PU combination
- Weight: 12.8kg ±2%
- Dimensions: 1,080mm(L) × 160mm(W) × 160mm(H)
- Protection rating: IP54 (standard wiper design)
- Mounting: Front flange (ISO 15552 MF1) with 8×M10 holes
Heavy-duty locking cylinder featuring dual safety mechanisms: mechanical position lock and pneumatic pressure retention. The integrated shock absorber minimizes end-impact noise (≤70dB). Requires 5μm filtered air and weekly lubrication via built-in grease nipple (ISO VG32 recommended).
Industrial Applications:
- Vertical lifting systems requiring position hold (e.g., elevator maintenance platforms)
- Press machine safety interlocks
- Automated warehouse stacker cranes
- Foundry equipment with vibration-prone environments
- Plastic injection molding ejection mechanisms
Installation protocol:
Locking mechanism requires 0.3MPa minimum air pressure for disengagement.
Always engage manual override during maintenance using the hex key slot (8mm Allen wrench).
| Property | Property Value |
|---|---|
| sku | SILF125X600 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | PT 1/2 |
| Magnet | Non-magnetic |
| Bore Diameter | 125mm |
| Stroke | 600mm |
| Lock Position | Front Cover with Lock |
