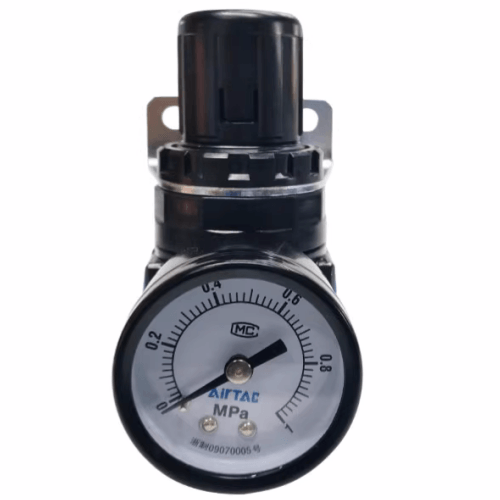

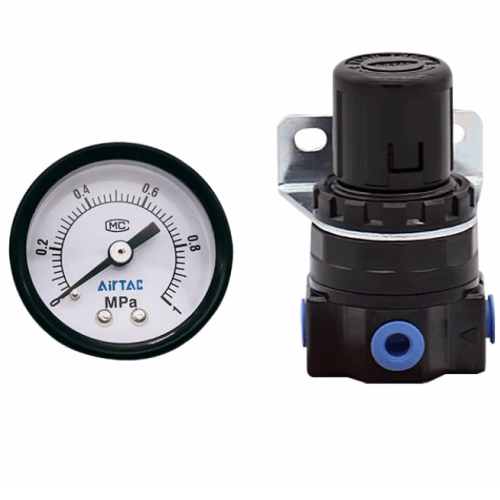

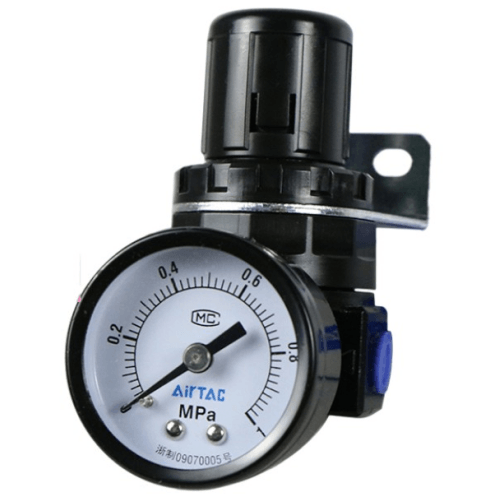

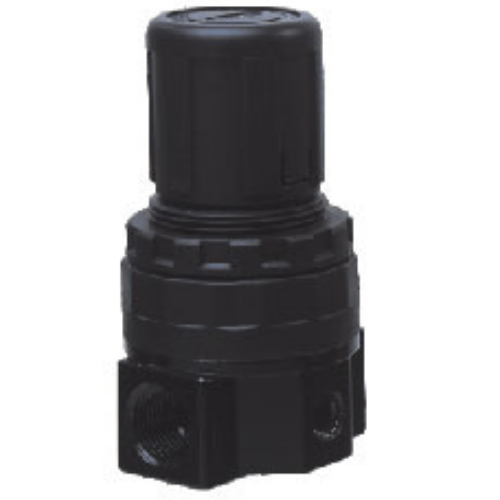

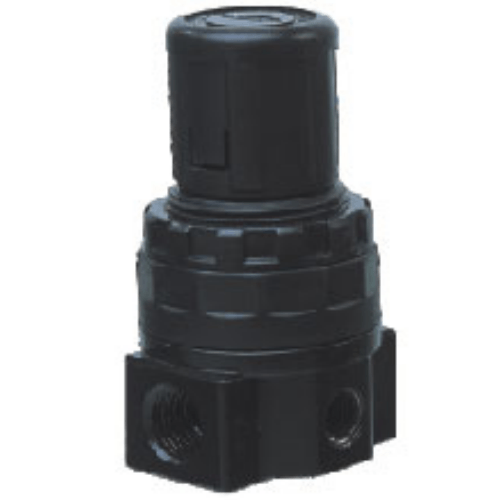

Airtac SR Pressure Regulator SR20006L1
2、Compact structure with space-saving design for simplified installation;
3、Stable pressure regulation with superior pressure control performance;
4、Available in standard version and low-pressure variant (maximum adjustable pressure 0.4MPa).
Category: Pressure Regulators , Brand: AIRTAC , Series: SR
AirTAC SR20006L1 Precision Pressure Regulator Specifications
- Model: SR20006L1
- Type: Pilot-operated pressure regulator with relief function
- Port size: Rc1/4 (G1/4 optional)
- Operating pressure range: 0.05–0.85 MPa
- Maximum input pressure: 1.0 MPa
- Adjustment range: 0.05–0.7 MPa (factory set to 0.4 MPa)
- Flow capacity: 1,800 NL/min (ANR)
- Body material: Aluminum alloy (anodized finish)
- Diaphragm material: NBR with fiber reinforcement
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 480g ±5%
- Dimensions: 98mm(H) × 50mm(W) × 44mm(D)
- Gauge interface: Dual M5 threaded ports (pressure indication)
- Locking mechanism: Rotary knob with tamper-resistant collar
- Venting capacity: 50 NL/min (pressure release)
Industrial-grade pressure regulator featuring precision-machined components and dual chamber design for stable output under fluctuating loads. The T-handle adjustment knob provides 270° rotation with ±2% set pressure accuracy. Integrated relief valve enables system depressurization without downstream venting. Compatible with ISO 8573-1:2010 [2:4:2] class air quality.
- Pneumatic actuator control in assembly lines
- Process pressure stabilization for CNC machinery
- Packaging equipment tension control systems
- Laboratory pneumatic tool stations
- Semiconductor handling robots
Installation protocol:
Mount vertically with arrow direction matching airflow. Always install
5μm filter upstream. For pulsation reduction, maintain 10x port diameter
straight tubing before regulator inlet. Lubricate adjustment thread
quarterly with ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | SR20006L1 |
| Port Size | PT1/8 |
