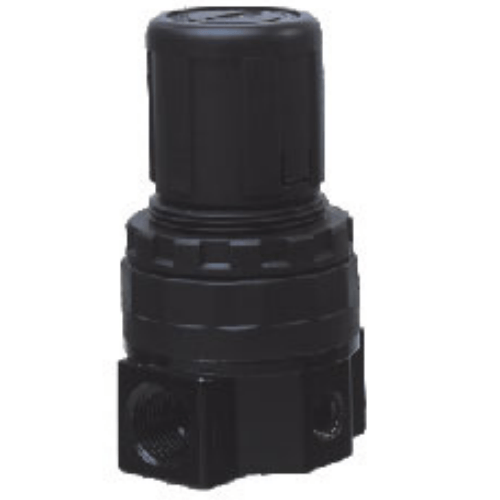

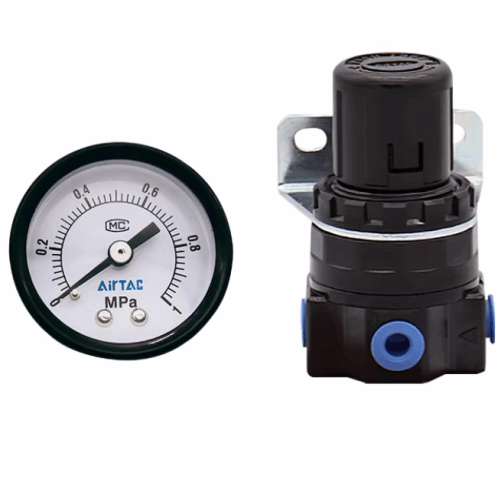

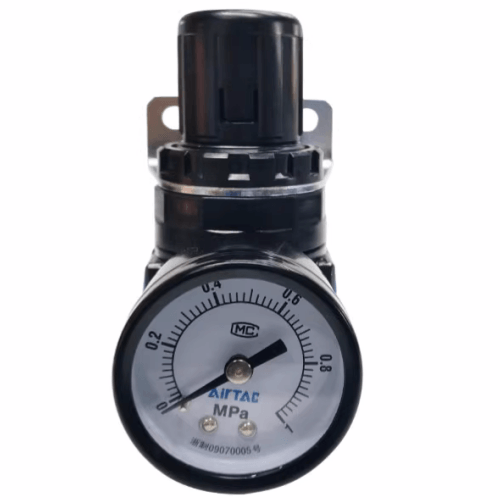

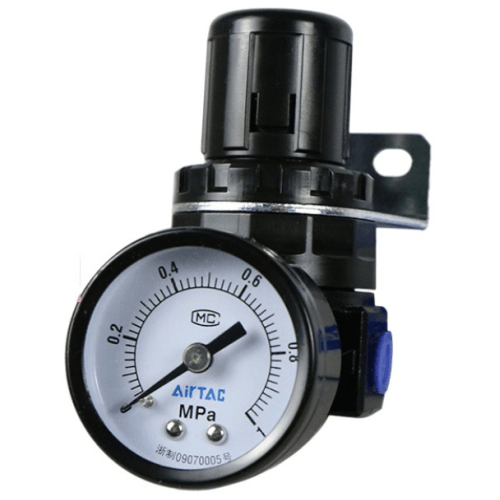

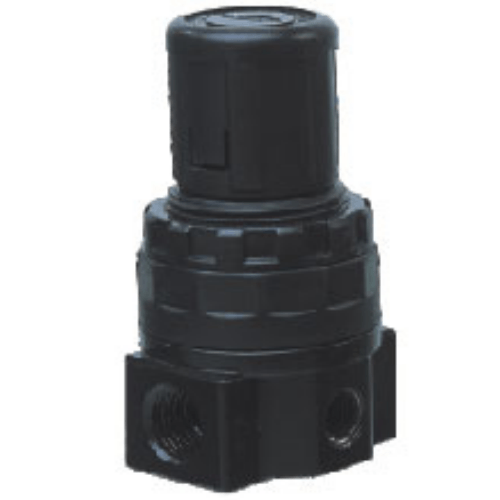

Airtac SR Pressure Regulator SR20006LN
2、Compact structure with space-saving design for simplified installation;
3、Stable pressure regulation with superior pressure control performance;
4、Available in standard version and low-pressure variant (maximum adjustable pressure 0.4MPa).
Category: Pressure Regulators , Brand: AIRTAC , Series: SR
AirTAC SR20006LN Precision Pressure Regulator Technical Details
- Model: SR20006LN (Lock Nut Mounting Type)
- Type: Precision air pressure regulator with gauge port
- Port size: PT1/4 (G1/4 optional)
- Pressure range: 0.05–0.85 MPa
- Max flow capacity: 2,500 L/min (ANR)
- Adjustment mechanism: Spring-loaded knob with 360° rotation
- Body material: Anodized aluminum alloy
- Spring chamber: Stainless steel
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 70℃ (non-freezing)
- Weight: 450g ±5%
- Dimensions: 80mm(L) × 50mm(W) × 98mm(H)
- Pressure gauge interface: M5 threaded
- Relief function: Built-in safety overflow
Industrial-grade pressure regulator featuring dual-chamber design for stable output under fluctuating input pressures. The T-handle adjustment knob provides precise torque control with ±3% pressure deviation. Integrated silencer reduces exhaust noise to ≤72dB(A). Compatible with ISO-1 mounting systems.
- Pneumatic actuator pressure stabilization
- CNC machine tool air circuit control
- Industrial robot end-effector systems
- Plastic injection molding machines
- Semiconductor manufacturing equipment
Installation protocol:
Mount upstream of lubricators using 20-25Nm torque. Always install
downstream filter (5μm minimum). Perform pressure bleed before
adjustment. Recalibrate every 2,000 operational hours.
| Property | Property Value |
|---|---|
| sku | SR20006LN |
| Port Size | PT1/8 |
