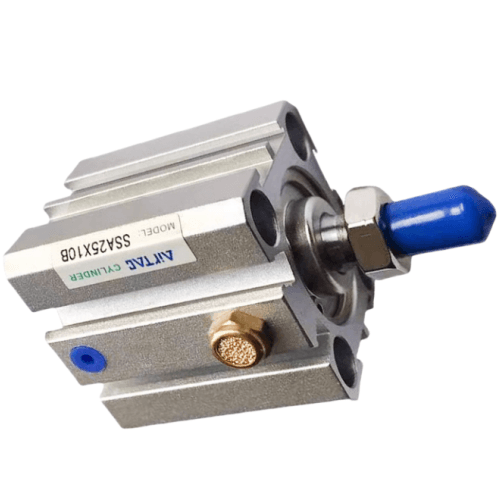

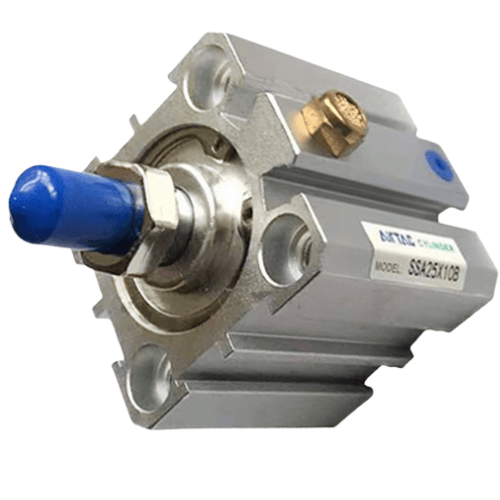

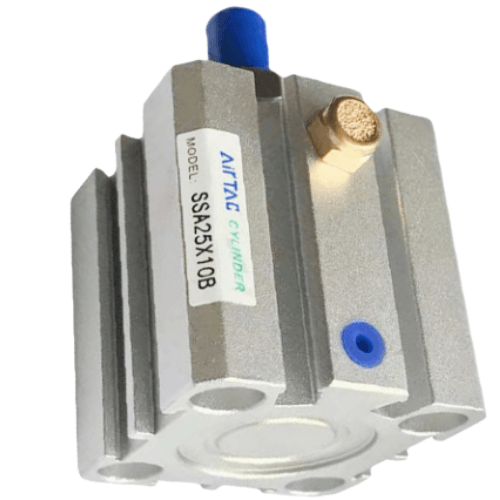

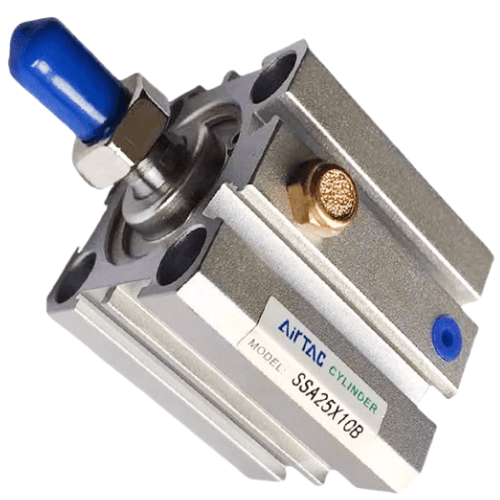

Airtac SSA Single-Acting Compact Cylinder SSA25X15S
$29.74
Regular price
$37.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SSA25X15S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
SSA Single-Action Roller Burnished Compact Cylinder
1. Complies with enterprise standards;
2. Features riveted structure between cylinder body/rear cover and piston/piston rod for compact reliability;
3. Hard-anodized inner bore surface after roller burnishing ensures superior wear resistance and durability;
4. Custom-engineered bidirectional piston sealing with integrated oil reservoir in space-saving design;
5. Ultra-compact profile optimizes installation space utilization;
6. Perimeter sensor grooves enable simplified sensor mounting;
7. Multiple specifications available with configurable cylinder options.
Category: Compact Cylinders | Brand: AIRTAC | Series: SSA
Installation tip:
Maintain ≤0.5mm alignment tolerance during mounting. Use flexible couplings
when lateral forces exceed 10% of maximum thrust. Lubricate rod monthly with
ISO VG32 hydraulic oil in high-cycle applications.
1. Complies with enterprise standards;
2. Features riveted structure between cylinder body/rear cover and piston/piston rod for compact reliability;
3. Hard-anodized inner bore surface after roller burnishing ensures superior wear resistance and durability;
4. Custom-engineered bidirectional piston sealing with integrated oil reservoir in space-saving design;
5. Ultra-compact profile optimizes installation space utilization;
6. Perimeter sensor grooves enable simplified sensor mounting;
7. Multiple specifications available with configurable cylinder options.
Category: Compact Cylinders | Brand: AIRTAC | Series: SSA
AirTAC SSA25X15S Single-Acting Compact Cylinder Specifications
- Model: SSA25X15S
- Type: Single-acting spring return (push type)
- Bore size: 25mm
- Stroke: 15mm (±1mm tolerance)
- Operating pressure: 0.1–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Port size: Rc1/8 (NPT1/8 optional)
- Cushion type: Rubber buffer
- Mounting style: Basic foot mounting (MF1)
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (Nitrile rubber)
- Weight: 0.35kg (excluding accessories)
- Dimensions: 85mm(L) × 45mm(W) × 45mm(H)
- Max theoretical thrust: 127N @0.5MPa
- Response time: ≤0.3s @0.6MPa
- Lubrication: Pre-lubricated (Grease-free operation)
Ultra-slim profile cylinder optimized for space-constrained automation systems. Features precision-ground rod and wear-resistant seals for >3,000km service life. The chrome-plated piston rod resists corrosion in humid environments. Requires dry filtered air (40μm filter recommended).
Ideal Applications:
- PCB handling robots in electronics manufacturing
- Medical device clamping mechanisms
- Textile machine thread tension control
- Beverage canning line positioning
- Automotive door panel press systems
Installation tip:
Maintain ≤0.5mm alignment tolerance during mounting. Use flexible couplings
when lateral forces exceed 10% of maximum thrust. Lubricate rod monthly with
ISO VG32 hydraulic oil in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | SSA25X15S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°C Speed Range: 50-500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Internal Thread |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | <15mm> |
