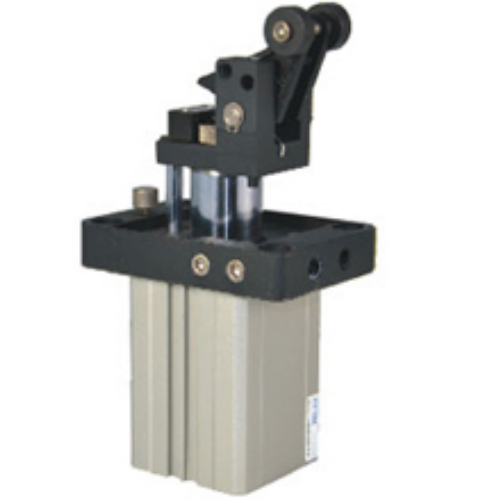

Airtac TWM Stopper Cylinder TWM50X30-S-K-F
2、Thickened piston rod design significantly enhances cylinder impact resistance;
3、Heavy-duty stop cylinders integrate oil cushions or adjustable hydraulic cushioning for reliable impact energy absorption;
4、Lever-type roller mechanism features self-locking device to prevent arm rebound and secondary pushing of blocked objects;
5、Multiple series and configurations available for customized selection.
Category: Stop Cylinders , Brand: AirTAC , Series: TWM
AirTAC TWM50X30-S-K-F Stopper Cylinder Technical Details
- Model: TWM50X30-S-K-F
- Type: Rodless linear blocking cylinder (double-acting)
- Bore size: Ø50 mm
- Stroke: 30 mm (±1.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Operating temperature: -10℃ to 80℃
- Cushioning: Adjustable pneumatic cushion
- Mounting style: Standard foot-mounted (ISO 15552 compatible)
- Sensor type: Built-in magnetic sensor (K series - PNP output)
- Port size: G1/8 (NPT1/8 optional)
- Weight: 2.3 kg (without accessories)
- Dimensions:
- Length: 225 mm (full retracted)
- Width: 62 mm (body width)
- Height: 70 mm (including mounting base)
- Seal material: HNBR (Hydrogenated Nitrile)
- Repeat accuracy: ±0.5 mm
- Maximum speed: 500 mm/s
- Protection rating: IP54 (standard wiper design)
High-precision stopping cylinder with integrated position detection, featuring wear-resistant guide mechanisms and dual anti-rotation shafts. The TWM series employs a unique wedge-blocking structure that delivers 30% greater holding force compared to standard stoppers. Requires clean, dry air with 5-40μm filtration.
- Precision workpiece positioning in CNC transfer lines
- Pallet locking in automated assembly systems
- Safety interlocks for robotic loading stations
- Conveyor flow control in packaging machinery
- Fixture securing in automotive welding jigs
Installation guidelines:
Lubricate with ISO VG32 turbine oil before initial operation.
Maintain 0.3-0.6 MPa air pressure for optimal blocking force.
Allow 15mm clearance around cylinder for heat dissipation.
| Property | Property Value |
|---|---|
| sku | TWM50X30-S-K-F |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | S-Magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Self-locking |
| Stroke | 30mm |
