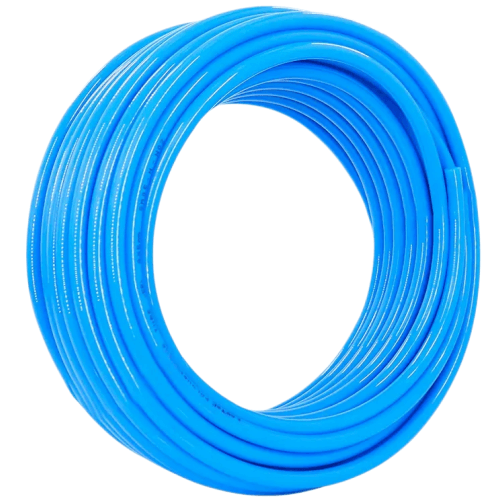

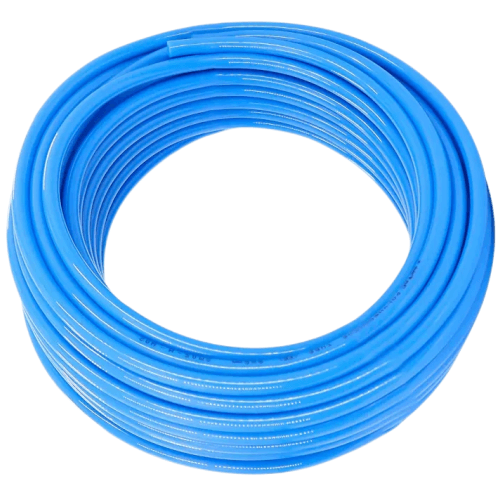

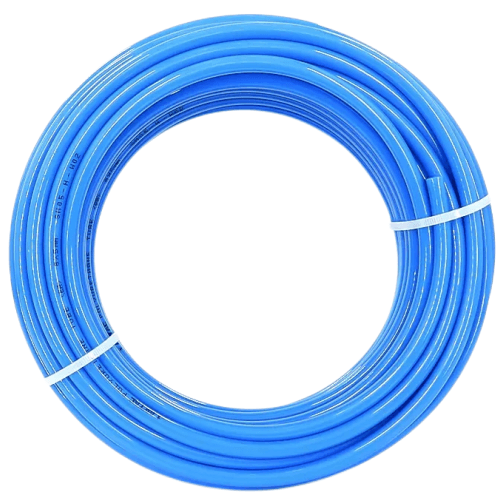

Airtac UE95A PU Pneumatic Hose UE95A040025020MCY
$9.99
Regular price
$17.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
UE95A040025020MCY
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Thermoplastic Polyurethane (TPU) material, ROHS-compliant environmental standards;
2、High elasticity: Minimal bending radius enables tight-space routing;
3、Anti-kinking properties: Superior resistance to coiling compared to conventional plastic tubes;
4、Exceptional shape memory: Withstands repeated expansion/contraction cycles;
5、Abrasion resistance: Extended service life in wear-prone environments;
6、Low gas permeability: Reduces leakage and contamination risks;
7、Excellent solvent resistance: Eliminates environmental pollution from fluid migration;
8、Minimal compression set: Maintains critical physical properties under load;
9、Media compatibility: Air/Water.
Category: Compressed Air Tubing , Brand: Airtac , Series: UE95A
Installation guidelines:
Use P=1.5×OD stainless steel spring guards in high-vibration areas.
Avoid continuous exposure to UV light - maximum 200hrs/year direct sunlight.
For food applications, flush with 70% ethanol solution before initial use.
2、High elasticity: Minimal bending radius enables tight-space routing;
3、Anti-kinking properties: Superior resistance to coiling compared to conventional plastic tubes;
4、Exceptional shape memory: Withstands repeated expansion/contraction cycles;
5、Abrasion resistance: Extended service life in wear-prone environments;
6、Low gas permeability: Reduces leakage and contamination risks;
7、Excellent solvent resistance: Eliminates environmental pollution from fluid migration;
8、Minimal compression set: Maintains critical physical properties under load;
9、Media compatibility: Air/Water.
Category: Compressed Air Tubing , Brand: Airtac , Series: UE95A
AirTAC UE95A PU Pneumatic Hose UE95A040025020MCY Technical Details
- Full Model Code: UE95A040025020MCY
- Material: Premium polyurethane (PU) with textile reinforcement
- Inner Diameter: 4.0mm ±0.2mm
- Outer Diameter: 6.0mm ±0.3mm
- Standard Length: 20 meters/coil
- Burst Pressure: ≥3.0 MPa (435 PSI)
- Working Pressure: 0.1-1.0 MPa (14.5-145 PSI)
- Temperature Range: -40℃ to +80℃ (instantaneous peak 100℃)
- Bend Radius: Minimum 15mm (cold state)
- Weight: 0.12kg/m ±5% (2.4kg total for 20m coil)
- Coil Dimensions: 320mm (W) × 320mm (D) × 65mm (H)
- Color Code: Transparent with blue tracer line (MCY suffix)
- Certification: ROHS compliant, FDA food-grade material option available
High-flex polyurethane tubing with exceptional kink resistance and memory retention. Features anti-static properties and microbial growth inhibition, making it ideal for clean environments. The smooth inner bore minimizes pressure drop (ΔP ≤0.05MPa @1MPa/5m).
Industrial Applications:
- Robotic tool changers in automotive assembly lines
- Pneumatic dental handpiece connections
- Beverage filling machine air supply systems
- Semiconductor wafer handling equipment
- Mobile hydraulic brake systems in AGVs
Installation guidelines:
Use P=1.5×OD stainless steel spring guards in high-vibration areas.
Avoid continuous exposure to UV light - maximum 200hrs/year direct sunlight.
For food applications, flush with 70% ethanol solution before initial use.
| Property | Property Value |
|---|---|
| sku | UE95A040025020MCY |
| Inner Diameter | <2.5 mm> |
| Wall Thickness | <0.75 mm> |
| Outer Diameter | 4.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (°C): -40 to 70 |
| Bend Radius | <8mm> |
| Length per Roll | M20 |
| Color | Transparent Yellow |
