Airtac X-ABD Male-Female Straight Thread Connector X-ABD0104
$4.62
Regular price
$12.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABD0104
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ABD0104 Male-Female Straight Threaded Connector Specifications
- Model: X-ABD0104
- Type: Straight through connector (male-female thread)
- Male thread: M5×0.8 (metric)
- Female thread: PT1/8 (BSPP)
- Thread standard: ISO 1179-2 compliant
- Max working pressure: 1.0 MPa (145 psi)
- Burst pressure: ≥3.0 MPa
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile) / Optional FKM (Fluorocarbon)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface roughness: Ra ≤1.6μm
- Weight: 12g ±0.5g
- Dimensions: 30mm(L) × 10mm(OD) × 4mm(ID)
- Torque specification: 1.2-1.5 N·m (male thread)
- Vibration resistance: 10-55Hz, 1.5mm amplitude

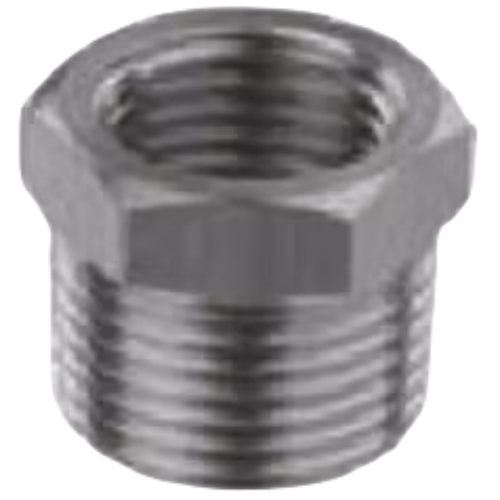

A precision-machined bidirectional connector featuring corrosion-resistant nickel plating and dual-sealing design. The stepped thread structure ensures leak-proof connections in high-vibration environments. Compatible with both metric and BSPP systems through its hybrid threading.
Typical Applications:
- Pneumatic valve manifold interconnections
- Air compressor piping systems
- CNC machine tool air circuits
- Semiconductor equipment gas lines
- Hydraulic test bench adapters
- Robotic end-effector pneumatic tooling
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads. Use two wrenches during assembly -
one to counter-hold the female end while tightening. Avoid exceeding 2.0 N·m torque
to prevent thread deformation. Pressure test at 1.5× operating pressure after installation.
Fluid Compatibility:
Compressed air (ISO 8573-1 Class 3), inert gases, and hydraulic oils with viscosity ≤46 cSt.
Not recommended for steam or acidic media.
| Property | Property Value |
|---|---|
| sku | X-ABD0104 |
