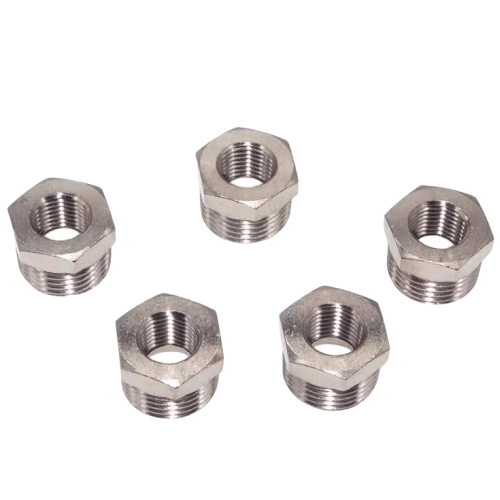

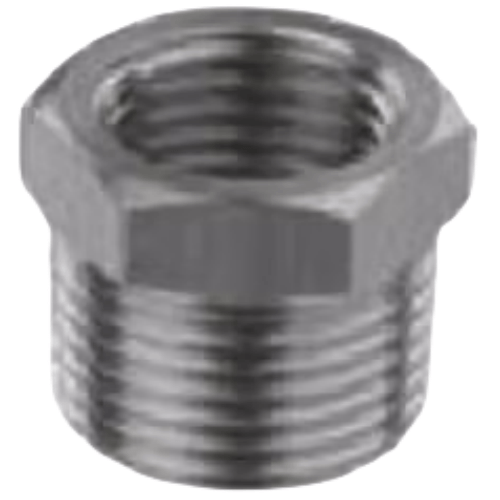

Airtac X-ABD Male-Female Straight Thread Connector X-ABD0203
AirTAC X-ABD0203 Union Connector - Male/Female Threaded Straight Through Specifications
- Model: X-ABD0203
- Type: BSPP (G) Threaded Straight Union
- Thread Specification: Male G1/8 (external) × Female G1/8 (internal)
- Material: Nickel-plated brass (C3604 lead-free)
- Surface Hardness: ≥HV300
- Max Working Pressure: 1.5 MPa (15 bar)
- Burst Pressure: ≥6 MPa
- Temperature Range: -5℃ to 120℃
- Seal Type: EPDM O-ring (standard), optional NBR/FKM
- Weight: 18g ±0.5g
- Dimensions: 29mm(L) × 14.5mm(W) × 14.5mm(H)
- Thread Engagement: 4 full turns minimum
- Corrosion Resistance: 96hr salt spray test compliant
Precision-machined union connector with dual sealing surfaces, designed for leak-free transitions between male and female BSPP threads in confined spaces. Features a 45° chamfered entry for smooth tube insertion and anti-vibration knurling pattern. Compatible with air, water, and inert gases.
- Pneumatic valve manifold interconnections
- Compressed air distribution blocks
- Hydraulic test bench plumbing
- CNC machine tool coolant lines
- Semiconductor gas delivery systems
Installation note:
Apply thread sealant to male threads only (PTFE tape recommended).
Avoid overtightening - torque limit 12-15N·m. Rotate female end during
assembly to prevent O-ring twisting. Compatible with tube OD: 4mm or 6mm.
