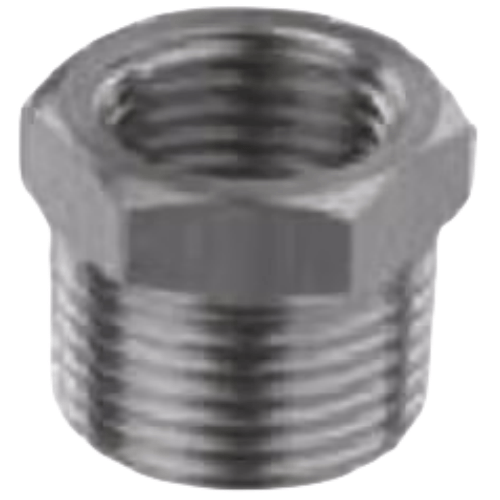

Airtac X-ABD Male-Female Straight Thread Connector X-ABD0304
AirTAC X-ABD0304 Internal-External Thread Straight Connector Specifications
- Model: X-ABD0304
- Thread Type: Internal BSPP (G) + External Metric (M)
- Internal Thread: G1/8 (Rc1/8 equivalent)
- External Thread: M5×0.8
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal Material: NBR (Nitrile rubber)
- Pressure Range: 0.05–1.0 MPa
- Temperature Range: -20℃ to 80℃
- Proof Pressure: 1.5 MPa
- Burst Pressure: ≥3.0 MPa
- Weight: 15g ±1g
- Dimensions: 19mm(Length) × 10mm(Width) × 10mm(Height)
- Surface Roughness: Ra ≤3.2μm (sealing surfaces)
- Leakage Rate: ≤3 bubbles/min (under 0.5 MPa air pressure)
Precision-machined transition fitting designed for converting between BSPP female threads and metric male threads in compact pneumatic systems. Features anti-vibration grooves and dual O-ring seats for secure connections in high-cycle applications. Compatible with air, water, and inert gases.
- Interfacing ISO 228 (G-series) and DIN/ISO metric components
- Miniature pneumatic tool manifolds
- Medical gas line adapters
- 3D printer air-assisted cooling systems
- Robotic end-effector plumbing conversions
Installation note:
Apply thread sealant only to male threads (PTFE tape recommended).
Torque specification: 1.2–1.8 N·m. Avoid overtightening - maximum
¼ turn past finger-tight. Inspect O-rings for debris before assembly.
