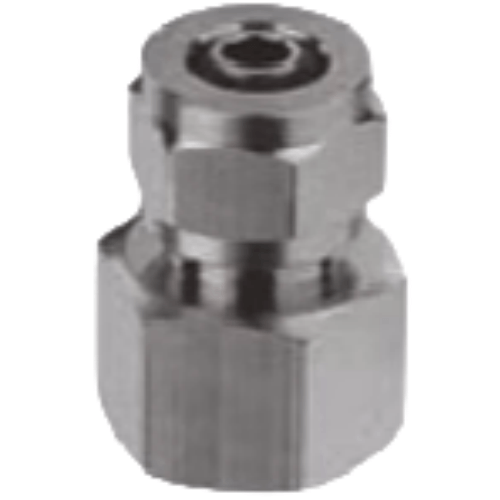

Airtac X-ABF Union - Female Thread with Lock Nut, Straight Terminal X-ABF1202A
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABF1202A
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ABF1202A Connector-Locknut Internal Thread Straight Terminal
- Model: X-ABF1202A
- Type: Straight terminal with internal thread & locknut
- Thread standard: Metric (M) / BSPP (G) optional
- Thread size: M12×1.25 / G1/8" (specify when ordering)
- Material: Brass body (CuZn39Pb3) with nickel plating
- Seal material: NBR rubber (fluorine rubber optional)
- Max working pressure: 1.6 MPa (232 psi)
- Proof pressure: 2.4 MPa (348 psi)
- Temperature range: -20℃ to 80℃ (NBR) / -20℃ to 150℃ (FKM)
- Surface hardness: HV0.3 ≥420
- Weight: 30g ±2g
- Dimensions: 40mm(L) × Φ12mm (body diameter) × Φ18mm (locknut width)
- Port connection: Female thread with dual O-ring sealing
- Vibration resistance: 10-2000Hz, 5G acceleration
- Certification: RoHS compliant
High-density forged brass terminal featuring anti-vibration locknut design and dual-seal structure. The internal spiral groove ensures 360° airtightness even under lateral pipe stress. Compatible with push-to-connect tubing (Φ8mm) and metric/BSPP adapters.
Typical Applications:
- Pneumatic cylinder port connections
- Modular pneumatic manifold systems
- Laser cutting machine air circuits
- Semiconductor equipment gas lines
- Robotic arm tooling interfaces
Installation note:
Apply 2-3 drops of silicone oil on O-rings before assembly.
Tighten locknut to 12-15 N·m torque using a crowfoot wrench.
Avoid overtightening to prevent thread deformation.
| Property | Property Value |
|---|---|
| sku | X-ABF1202A |
