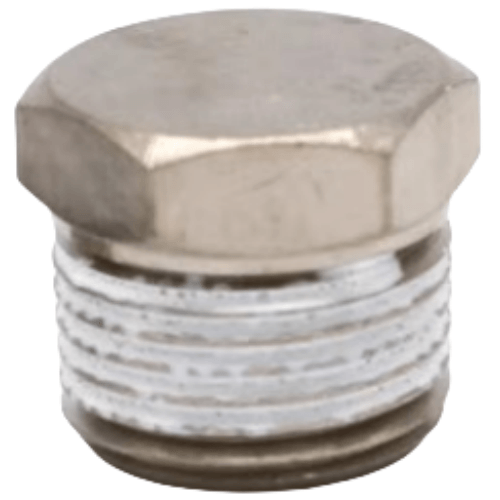

Airtac X-ABZ Connector - Hex Head Plug X-ABZ03
AirTAC X-ABZ03 Hex Plug Specifications
- Model: X-ABZ03
- Type: External hexagon plug (blind plug)
- Thread standard: PT1/8 (NPT1/8 optional)
- Material: Carbon steel with nickel plating (SUS304 available)
- Hexagon width: 8mm (AF measurement)
- Thread length: 5mm ±0.2
- Installation torque: 3.5-4.5 N·m
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 150℃
- Surface hardness: ≥HV300
- Weight: 12g ±0.5g
- Dimensions: 15mm(L) × 8mm(W) × 5mm(H)
Precision-engineered sealing plug with anti-vibration hex design, featuring dual O-ring grooves for redundant sealing. The knurled base enables hand-tight pre-installation. Compatible with ISO 1179-2 port standards, ideal for high-cycle pneumatic systems requiring frequent maintenance access.
- Blocking unused ports in pneumatic manifolds
- Pressure test point sealing in hydraulic systems
- Modular assembly in automation equipment
- Vacuum line termination in packaging machinery
- Dust protection for reserved ports in CNC machines
Installation protocol:
Apply thread sealant to male threads before final torque application.
Use 8mm combination wrench for installation - avoid adjustable wrenches
to prevent edge deformation. Perform pressure test after 24hrs curing time.
