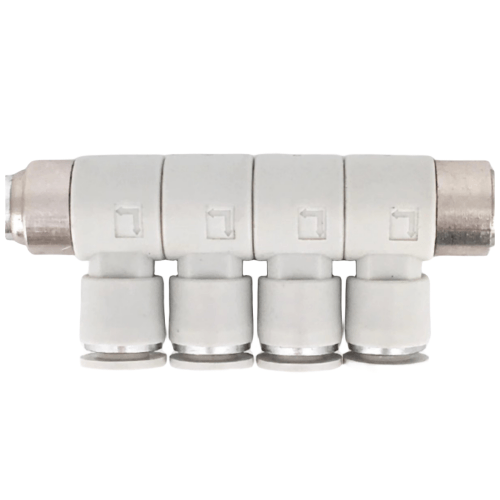

Airtac X-AFD Swivel Adjustable Hex Port Connector X-AFD12
AirTAC X-AFD12 Swivel Adjustable Hexagonal Manifold Specifications
- Model: X-AFD12
- Type: 360° Rotatable Hex Manifold with Adjustable Ports
- Body Material: Nickel-plated Brass (C3604)
- Thread Standard: G1/8 (BSPP) / 1/8" NPT Optional
- Working Pressure: 0-1.0 MPa (145 PSI)
- Temperature Range: -20℃ to 80℃ (NBR Seals) / -20℃ to 150℃ (FKM Seals)
- Max Rotation Angle: 330° Adjustable (Per Port)
- Seal Material: Standard NBR / Optional FKM (Viton)
- Port Configuration: 6 Independent Ports (3 Input/3 Output Configurable)
- Weight: 120g ±5g
- Dimensions: 40mm (L) × 32mm (W) × 32mm (H)
- Surface Finish: Electroless Nickel Plating (5-8μm)
- Leakage Rate: ≤3 bubbles/min @ 0.5MPa
- Torque Resistance: 1.5N·m Max
Multi-directional flow distribution block featuring individual port rotation lock mechanism. The hexagonal design allows compact multi-plane piping layouts with anti-vibration structure. Includes dual O-ring seals (primary dynamic seal + secondary backup seal) for leak-free performance in dynamic applications. Compatible with air, inert gases, and light hydraulic fluids.
- Robotic end-effector pneumatic circuits
- Modular pneumatic test benches
- Multi-axis tool changers in CNC systems
- Mobile equipment compressed air distribution
- Semiconductor wafer handling robots
- Packaging machine multi-station control
Installation Protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 15N·m).
For vertical mounting, orient adjustment dials upward to prevent debris accumulation.
Perform rotational adjustment BEFORE pressurization.
| Property | Property Value |
|---|---|
| sku | X-AFD12 |
