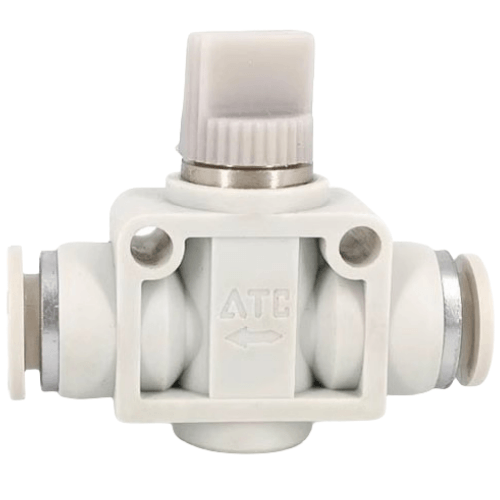

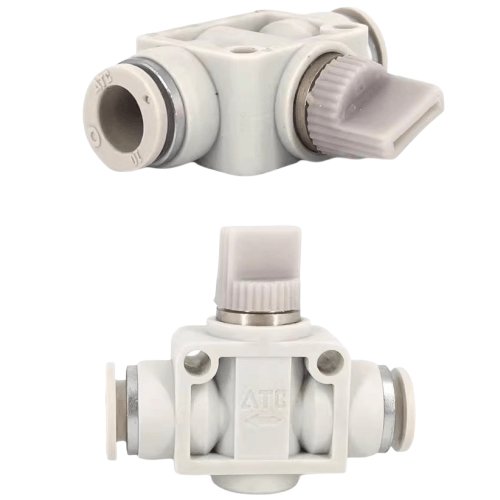

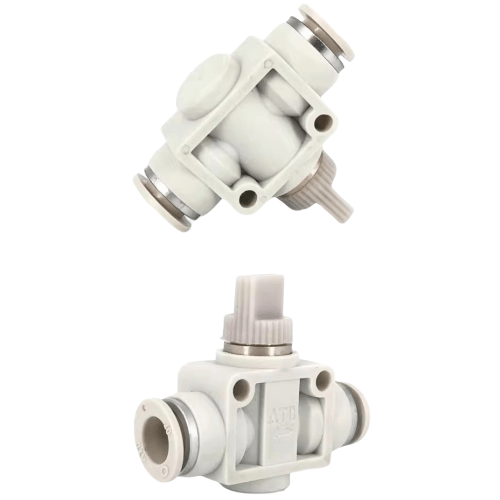

Airtac X-AHVFF Manual Valve X-AHVFF1212
AirTAC X-AHVFF1212 Manual Valve Technical Details
- Model: X-AHVFF1212
- Type: 2-position 3-way manual lever valve (spring return)
- Port configuration: P (pressure), A (output), R (exhaust)
- Thread standard: G1/8 (ISO228-1 compliant)
- Operating pressure range: 0.05–1.0 MPa
- Max flow capacity: 750 L/min (ANR)
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: HNBR (hydrogenated nitrile) for improved oil resistance
- Ambient temperature range: -10℃ to 80℃
- Operating force: ≤3.5N (lever actuation)
- Weight: 0.48kg ±2%
- Dimensions: 72mm(L) × 40mm(W) × 97mm(H) (excluding lever)
- Mounting options: Panel mounting with M4 screws (spacing 60mm)
- Port orientation: Axial configuration with 360° rotatable ports
- Protection rating: IP67 (dust/water resistant)
Robust manual override valve featuring ergonomic lever design with positive tactile feedback. The hardened steel shaft and dual-bearing pivot mechanism ensure >500,000 cycle durability. Integrated silencer reduces exhaust noise to ≤65dB(A). Compatible with ISO 8573-1:2010 [3:4:3] class compressed air.
- Emergency override in automated production lines
- Maintenance bypass for pneumatic cylinder systems
- Manual control in material handling equipment
- Safety interlocks for press machinery
- Process control in semiconductor manufacturing
Installation guidance:
For optimal performance, install downstream of 5μm filter regulator.
Lubricate pivot point with ISO VG32 hydraulic oil every 6 months.
Avoid lateral forces exceeding 15N on actuation lever.
