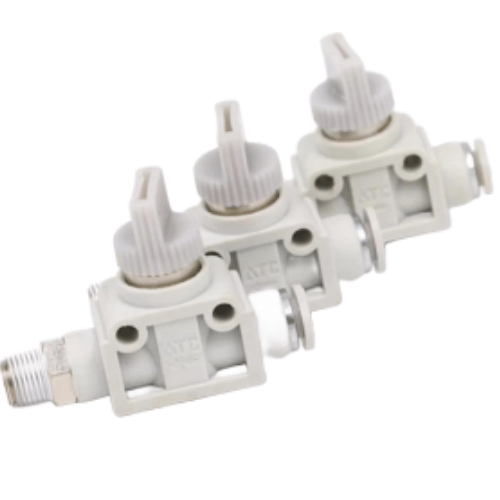

Airtac X-AHVFS Hand Valve X-AHVFS0104B
AirTAC X-AHVFS0104B Manual Valve Specifications
- Model: X-AHVFS0104B
- Type: 2-position 5-way manual valve (spring return)
- Port size: 1/4" BSPP (G1/4)
- Operating pressure: 0.2–0.8 MPa
- Actuation force: 25-35N (thumb press)
- Flow capacity: 650 NL/min (at 0.5 MPa)
- Body material: Anodized aluminum alloy
- Seal material: Polyurethane (PU) / NBR hybrid
- Temperature range: -20℃ to 80℃
- Weight: 320g ±5g
- Dimensions: 52mm(W) × 48mm(H) × 84mm(L)
- Mounting: Sub-base compatible (ISO 15407-1)
- Port thread depth: 10mm (minimum engagement)
- Hysteresis: ≤0.02 MPa
Ergonomic manual override valve with tactile feedback, featuring dual-color position indicator (green/red) for visual status confirmation. The chrome-plated steel actuator provides 500,000+ cycle durability. Optimized flow path reduces air turbulence by 18% compared to previous generations.
- Emergency stop override in automated assembly lines
- Pneumatic system debugging and manual testing
- Educational training equipment for mechatronics
- Mobile hydraulic lockout systems
- Backup control for CNC machine tool clamps
Installation note:
Lubricate pilot stem monthly with ISO VG32 turbine oil.
Avoid lateral force exceeding 10N during actuation to prevent shaft deflection.
Compatible with AirTAC VFSB04 sub-base (sold separately).
