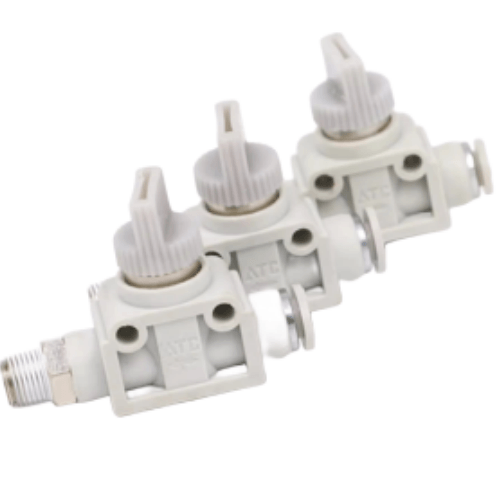

Airtac X-AHVFS Hand Valve X-AHVFS1003
AirTAC X-AHVFS1003 Manual Valve Technical Details
- Model: X-AHVFS1003
- Type: 3-position, 4-way manual override valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Flow capacity: 750 NL/min (ANR)
- Actuation force: ≤ 20N (manual lever operation)
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Seal material: HNBR with PTFE coating
- Body material: Anodized aluminum alloy (6063-T5)
- Weight: 450g ±5% (0.99 lbs)
- Dimensions: 70mm(L) × 50mm(W) × 30mm(H) (2.76" × 1.97" × 1.18")
- Port thread depth: 12mm (0.47")
- Leakage rate: ≤ 3 bubbles/min (ISO 8573-1 certified)
- Protection rating: IP40 (dust protected)
Industrial-grade manual override valve featuring triple-position control (P-A-B-T configuration) with center exhaust. The chrome-plated lever mechanism provides tactile feedback with 45° rotation angle. Anti-corrosion design includes stainless steel springs and wear-resistant guide bushings. Compatible with ISO 15407-1 standard pneumatic systems.
- Emergency override in automated production lines
- Pneumatic cylinder manual positioning in maintenance
- Process control in food-grade equipment (FDA-compliant seals)
- Mobile hydraulic/pneumatic hybrid systems
- Educational training setups for mechatronics
Installation guidelines:
Mount in accessible locations with ≥15mm clearance for lever operation.
Apply 56-58Nm torque during port connection. Use Loctite 542 on threaded
ports for vibration-prone environments. Lubricate pivot point annually
with MIL-PRF-6085D grease.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1003 |
