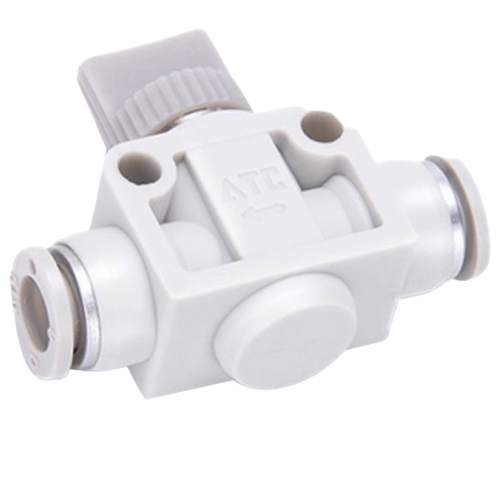

Airtac X-AHVSS Manual Valve X-AHVSS0202B
AirTAC X-AHVSS0202B Manual Valve Technical Details
- Model: X-AHVSS0202B
- Type: 2-position 3-way manual valve (spring return)
- Port configuration: P (pressure), A (actuator), R (exhaust)
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Body material: Reinforced PA66 nylon (30% glass fiber)
- Seal material: Heat-resistant HNBR rubber
- Temperature range: -10℃ to 120℃ (with intermittent peak 150℃)
- Weight: 340g ±5g
- Dimensions: 58mm(L) × 44mm(W) × 75mm(H)
- Actuation force: 25N max (lever operation)
- Mounting options: Panel mount with M5 screws (included)
- Pressure resistance: 1.5x rated pressure (burst pressure 3.0 MPa)
Heavy-duty manual override valve with tactile position feedback, featuring a corrosion-resistant composite body and industrial-grade sealing. The ergonomic lever design enables precise flow control in high-vibration environments. Includes integrated silencer for exhaust port noise reduction (85 dB(A) max). Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Emergency shutdown systems in pneumatic circuits
- Production line manual override stations
- High-temperature molding machine controls
- Mobile hydraulic system pilot controls
- Food processing equipment (FDA-compliant grease option available)
Maintenance advisory:
Lubricate pivot points every 5,000 cycles using ISO VG32 hydraulic oil.
For vertical installations, install exhaust port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-AHVSS0202B |
