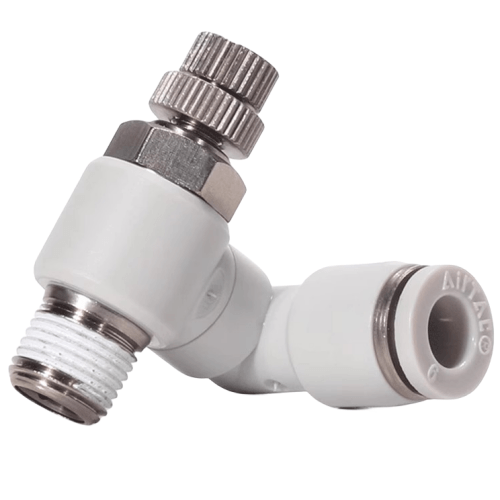

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS1004B
AirTAC X-AJSS1004B Swivel Joint-Throttle Type Specifications
- Model: X-AJSS1004B
- Type: 360° Rotatable Throttle Swivel Joint
- Port size: PT1/4 (G1/4 equivalent)
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (high nitrile)
- Operating temperature: -20℃ to 120℃
- Max torque resistance: 3.5 N·m
- Pressure range: 0.05–1.0 MPa
- Flow adjustment range: 0–100% linear regulation
- Rotation angle: ±5° axial tilt + 360° continuous rotation
- Leakage rate: <10 cm³/min at 0.5 MPa
- Weight: 215 g ±5g
- Dimensions: 80mm(L) × Ø20mm(body) × 40mm(port spacing)
Precision swivel joint with integrated flow control, featuring dual-axis articulation for complex pneumatic line routing. The knurled throttle knob enables fine flow adjustment while maintaining position under vibration. Nickel plating provides corrosion resistance in humid environments.
- Multi-axis robotic end effectors
- Plastic injection molding machine nozzles
- Automated painting equipment
- Rotary index table pneumatic feeds
- Semiconductor wafer handling systems
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tighten lock nut to 12-15 N·m torque after adjusting orientation.
For pulsation reduction, install minimum 30cm downstream from valves.
