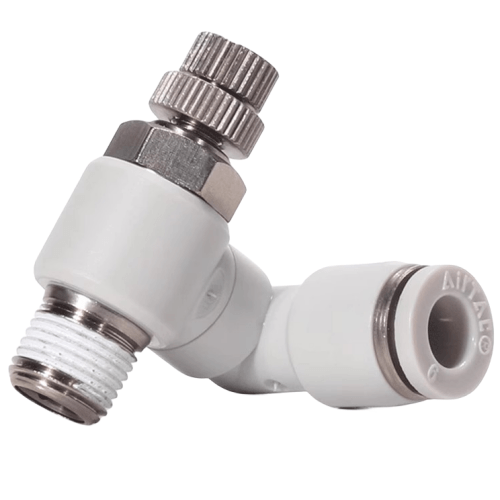

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS1201
AirTAC X-AJSS1201 Swivel Joint-Throttle Type Specifications
- Model: X-AJSS1201
- Type: 360° rotatable throttle swivel joint
- Material: Brass with nickel plating (body), CR rubber seals
- Thread specification: PT1/8 (BSPP)
- Max working pressure: 0.7 MPa (101.5 PSI)
- Min working pressure: 0.05 MPa (7.25 PSI)
- Temperature range: -5℃ to 60℃
- Flow characteristics: Adjustable from 0.2 to 15 L/min (air)
- Rotation torque: ≤0.15 N·m
- Leakage rate: ≤10 bubbles/min (under 0.5 MPa pressure)
- Weight: 82g ±2g
- Dimensions: 48mm(L) × 22mm(Ø) × 34mm(H) (body only)
- Connection interface: Male thread + swivel female thread
- Allowable misalignment: ±3° angular deviation
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision swivel joint with integrated flow control, featuring a knurled throttle adjustment knob for fine flow regulation. The dual-seal design combines O-ring and metal-to-metal contact for leak-free rotation. Anti-vibration structure maintains setting stability under mechanical shock.
- Pneumatic tool air supply line regulation
- Automated assembly line clamping force adjustment
- Coolant flow control in CNC machining centers
- Medical gas distribution systems requiring sterile connections
- Robotic arm end-effector pneumatic circuits
Installation note:
Apply 2-3 drops of ISO VG32 hydraulic oil on swivel surfaces before initial use.
Avoid overtightening - recommended torque 12-15N·m. Perform flow calibration
every 500 operating hours using bubble flowmeter.
- Loosen lock nut (counterclockwise 2 full turns)
- Rotate adjustment knob: CW to reduce flow, CCW to increase
- Test flow rate using calibrated measurement device
- Re-tighten lock nut while holding knob position
