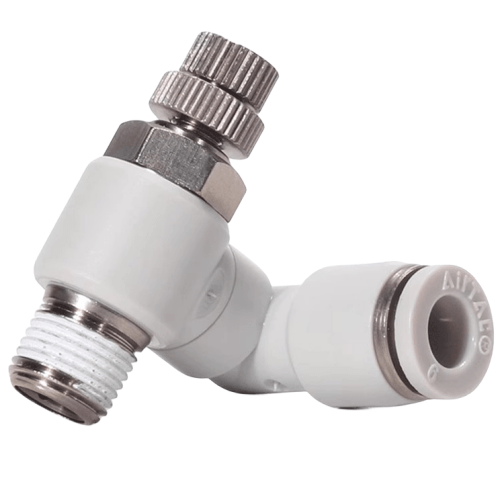

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS601B
AirTAC X-AJSS601B Swivel Joint Specifications
- Model: X-AJSS601B
- Type: 360° Rotatable Throttle Joint (Flow Control Type)
- Material: Chrome-plated brass body + POM rotating components
- Thread standard: G1/8 (BSPP) female threads both ends
- Applicable fluid: Compressed air (non-lubricated or oil mist)
- Pressure range: 0-1.0 MPa
- Temperature range: -20℃ to 80℃
- Max rotation angle: ±30° axial tilt + 360° continuous rotation
- Flow coefficient (Cv): 0.45
- Weight: 118±5g
- Dimensions: 60mm(L) × 16mm(Dia) × 16mm(Rotary section)
- Seal material: HNBR (Hydrogenated Nitrile) o-rings
- Leakage rate: ≤5 bubbles/min under 0.5MPa
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Protection rating: IP54 (dust/water splashes)
Multi-axis adjustable pneumatic connector featuring integrated flow control with ±30° angular compensation. Precision-machined dual ball bearing structure ensures smooth rotation under pressure. The knurled throttle knob allows 180° adjustment (20-200 L/min airflow) while preventing accidental contact displacement. Anodized aluminum flow indicator window shows real-time setting.
- Robotic welding arms requiring flexible air supply
- Rotary index tables in assembly automation
- Plastic injection molding machine nozzle cooling
- Multi-position pneumatic test benches
- Food packaging line tooling with frequent position changes
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do NOT overtighten beyond 1.5Nm torque).
Perform flow calibration at 0.3MPa before full operation. Lubricate rotating parts with ISO VG32
pneumatic oil monthly in high-cycle applications (>5,000 rotations/day).
