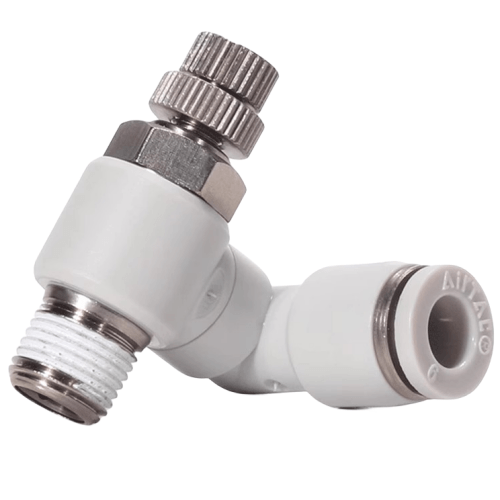

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS602B
AirTAC X-AJSS602B Swivel Joint Throttle-Type Specifications
- Model: X-AJSS602B
- Type: 360° Rotatable throttle-type joint with flow control
- Port size: 1/4" BSPP (G1/4)
- Material: Brass with nickel plating
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Flow capacity: Cv=0.25 (at 0.5 MPa)
- Rotation angle: ±5° axial misalignment compensation
- Seal material: HNBR (Hydrogenated Nitrile)
- Weight: 298g ±5g
- Dimensions: 62mm(L) × 32mm(W) × 32mm(H)
- Thread engagement: 12mm minimum
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Flow adjustment range: 20-100% full scale
A precision swivel joint with integrated flow control, featuring maintenance-free rotation mechanism and corrosion-resistant construction. The X-AJSS602B enables dynamic piping configurations while maintaining precise airflow regulation, with 50,000+ rotation cycles durability. Includes hex wrench for flow adjustment and anti-vibration o-ring seating.
- Multi-axis robotic arm pneumatic connections
- CNC machine tool coolant line manifolds
- Packaging machinery with moving actuators
- Semiconductor handling equipment
- Medical gas delivery systems
- Rotary indexing table pneumatic circuits
Installation guidelines:
Apply PTFE tape on male threads only. Avoid overtightening beyond 14N·m torque.
For pulsation reduction, install flow control knob facing upward. Compatible with
ISO 8573-1 Class 3 compressed air (max 5mg/m³ oil content).
- Clockwise rotation reduces flow (min 20% of rated flow)
- Counter-clockwise increases flow (fully open at 3.5 turns)
- Locknut maintains setting under vibration
