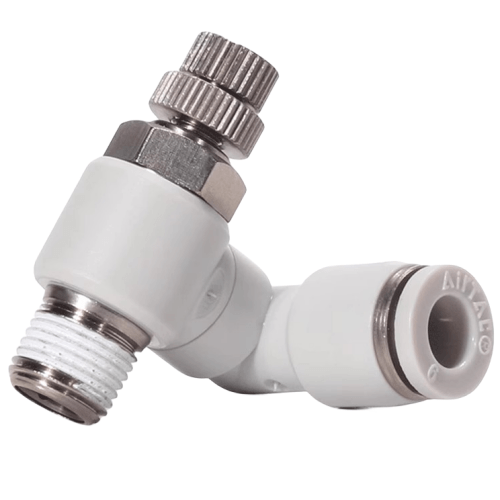

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS803B
AirTAC X-AJSS803B Swivel Joint-Throttle Type Specifications
- Model: X-AJSS803B
- Type: Multi-directional rotary flow control joint
- Thread Size: G1/8 (BSPP)
- Material: Stainless Steel (SUS303) body + PPS resin rotor
- Pressure Range: 0.05–0.7 MPa
- Temperature Range: -10℃ to 80℃ (non-freezing)
- Max Torque: ≤0.3 N·m
- Swivel Angle: 360° continuous rotation ±3° axial tilt
- Flow Rate: 350 NL/min @0.5 MPa
- Leakage: ≤20 bubbles/min (ISO 6952)
- Weight: 0.25 kg (±5g tolerance)
- Dimensions: 80mm(L) × 50mm(W) × 50mm(H)
- Surface Treatment: Electropolished internals
- Protection Rating: IP54 (splash/dust resistant)
Multi-axis rotary joint featuring precision throttling control through helical groove design. Maintenance-free sealed bearings enable smooth 360° rotation with <3° angular deviation. Corrosion-resistant construction with vacuum-grade sealing (≤20μm Ra surface finish) prevents particle generation in cleanroom environments.
- Robotic arm end-effector pneumatic lines
- Rotary indexing table air supply systems
- Packaging machine tooling head rotation
- CNC machine coolant control swivels
- Semiconductor wafer handling vacuum chucks
Installation note:
Apply 2-3 drops of ISO VG32 hydraulic oil to rotor interface before initial use.
Avoid overtightening - maximum installation torque 1.5 N·m.
For vertical mounting, install drain port downward.
