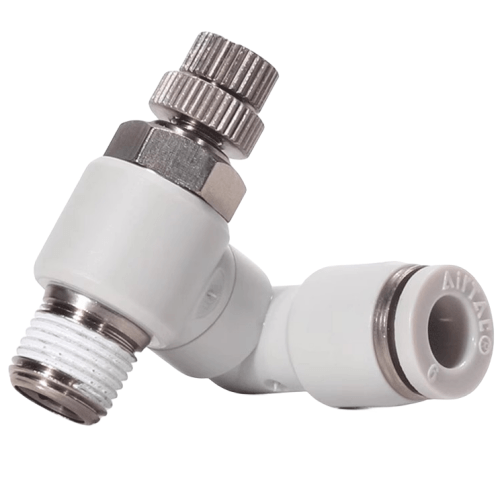

Airtac X-AJSS Universal Throttle-Type Swivel Joint Connector X-AJSS804
AirTAC X-AJSS804 Universal Joint-Throttling Type Connector Specifications
- Model: X-AJSS804
- Type: Swivel joint with throttling adjustment
- Body material: Nickel-plated brass (anti-corrosion grade C6730)
- Seal material: HNBR rubber (-20℃ to 120℃ compatible)
- Thread standard: PT1/8 (BSPP) / M5×0.8 optional
- Flow control range: 50-800 L/min (ANR)
- Max rotation angle: ±25° axial deflection
- Operating pressure: 0.05-0.7 MPa
- Torque resistance: 0.3 N·m max at 0.5 MPa
- Temperature range: -5℃ to 60℃
- Weight: 120g ±5%
- Dimensions: 82mm(L) × 34mm(W) × 34mm(H)
- Surface hardness: HV200-250 (nickel coating)
- Leakage rate: ≤3 bubbles/min under ISO 6952-1 test
Multi-axis adjustable pneumatic connector with integrated flow control valve, featuring 360° free rotation and 25° angular compensation. The dual-locking hex nut design prevents loosening under vibration. Precision throttling screw enables 10-step incremental flow adjustment (0.5mm pitch).
- Robotic arm end-effector pneumatic connections
- Multi-axis CNC machine tool cooling systems
- Plastic injection molding machine nozzle control
- Automated packaging line gripper actuators
- Semiconductor wafer handling vacuum circuits
Installation protocol:
Apply 18-22 N·m torque during assembly. Perform flow calibration
after 5 full rotations of the throttling screw. Lubricate swivel
joint with ISO VG32 hydraulic oil every 2,000 operating hours.
