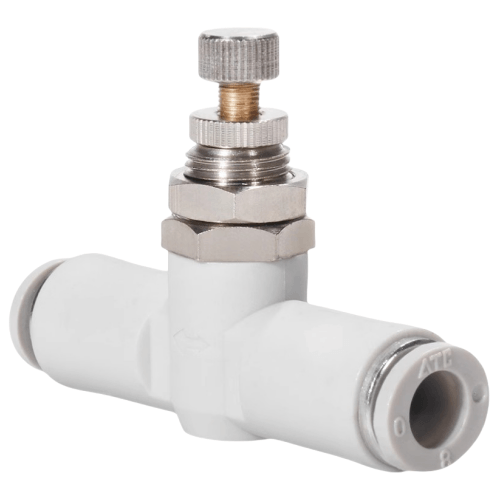

Airtac X-APA Adapter - Tube Throttle Type X-APA4
$6.32
Regular price
$13.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APA4
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APA4 Throttle-Type Tube Fitting Specifications
- Model: X-APA4
- Type: Adjustable throttle fitting (flow control)
- Body material: Nickel-plated brass
- Tube compatibility: 4mm OD polyurethane/nylon tubing
- Flow adjustment range: 0.05-0.5 L/min (air)
- Max operating pressure: 1.0 MPa
- Temperature range: -5℃ to 80℃
- Thread specification: M5×0.8 female threads
- Seal material: NBR (nitrile rubber)
- Weight: 23g ±1g
- Dimensions: 35mm(L) × 18mm(W) × 18mm(H)
- Rotation torque: ≤0.3 N·m
- Repeatability error: ≤±5% FS
Precision throttling fitting with 270° adjustable knob for fine flow regulation in pneumatic circuits. Features anti-vibration locking nut and color-coded flow direction indicator (blue ring). Includes built-in check valve to prevent reverse flow when closed.
Typical Applications:
- Speed control of pneumatic cylinders in automation lines
- Air flow regulation in vacuum pick-and-place systems
- Medical gas control equipment
- Laboratory analytical instrument pneumatics
- Packaging machine actuator timing adjustment
Installation protocol:
Always install with flow arrow matching system direction. Use two wrenches during assembly -
one to hold base fitting (14mm hex) and another to tighten locknut (17mm hex).
Perform final flow calibration at operating pressure.
| Property | Property Value |
|---|---|
| sku | X-APA4 |
