Airtac X-APA Adapter - Tube Throttle Type X-APA8
AirTAC X-APA8 Throttle Type Push-in Fitting Specifications
- Model: X-APA8
- Type: Throttle-type tube fitting (flow control)
- Thread size: Rc1/8 (G1/8 optional)
- Tube OD compatibility: 8mm (φ8±0.2mm)
- Body material: Nickel-plated brass (C3604)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Pressure range: 0.05-1.0 MPa
- Flow coefficient (Cv): 1.6
- Adjustment range: 1/4 turn to full close (0-100% flow)
- Weight: 32g ±2g
- Dimensions: 40mm(L) × 16mm(W) × 16mm(H)
- Vibration resistance: ≤10Hz @ 1.5mm amplitude
- Leakage rate: ≤3 bubbles/min (ISO 6952)

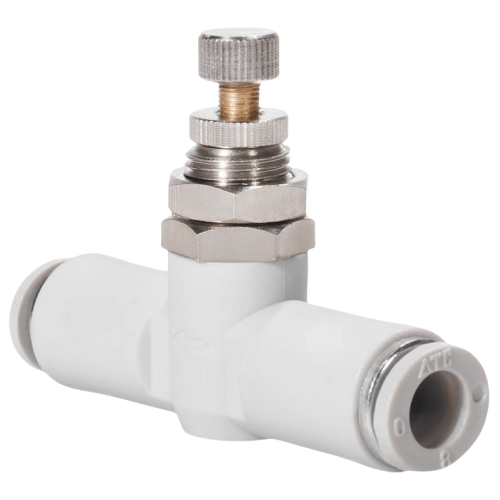

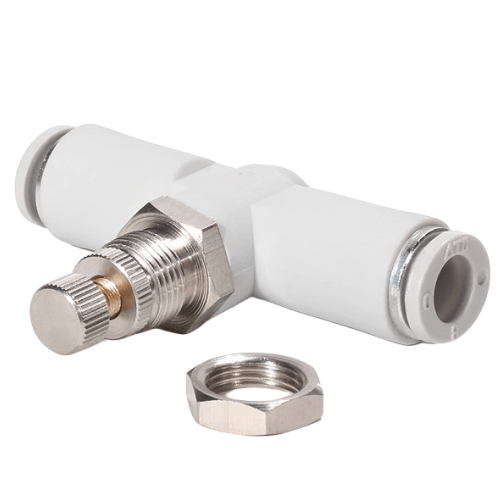

Precision throttle fitting with integrated flow control knob, featuring 360° rotatable collar for flexible installation. The knurled adjustment ring enables precise flow regulation while maintaining vibration resistance. Includes built-in tube retention clip and particle screen (mesh size 150μm).
- Pneumatic cylinder speed regulation
- Vacuum system flow balancing
- Packaging machine actuator timing control
- Medical gas delivery systems
- Semiconductor handling equipment
Installation note:
For optimal performance, insert tube perpendicularly until it bottoms out (audible click).
Maximum torque during adjustment: 0.5N·m. Lubricate threads with PTFE tape for sealed connections.
| Property | Property Value |
|---|---|
| sku | X-APA8 |
