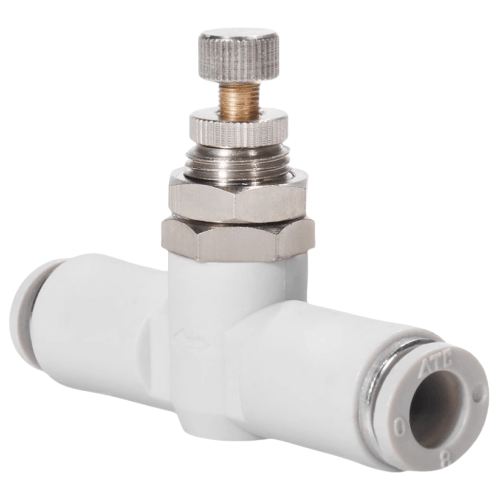

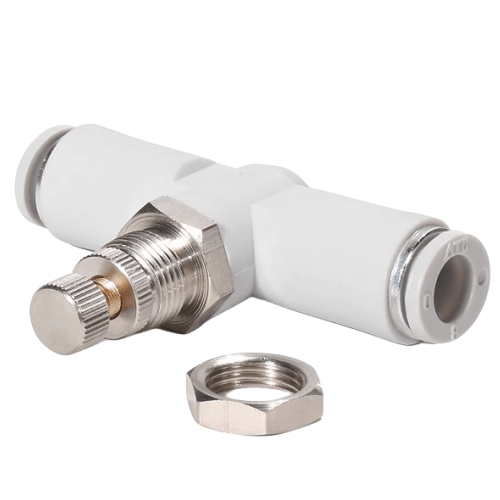

Airtac X-APAM Tube Throttle Type Connector X-APAM10
AirTAC X-APAM10 Throttle-Type Fitting Specifications
- Model: X-APAM10
- Type: Adjustable throttle joint with flow control
- Body material: Brass (Nickel-plated)
- Seal material: NBR (Nitrile rubber)
- Port size: M5×0.8 / 1/8" BSPP (Dual thread design)
- Tube OD compatibility: Ø4mm (0.16") and Ø6mm (0.24")
- Operating pressure: 0.05-1.0 MPa (7-145 PSI)
- Flow adjustment range: 50-800 L/min (ANR)
- Temperature range:
- Fluid temperature: -20℃ to 80℃
- Ambient temperature: -5℃ to 60℃
- Leakage rate: ≤0.1 mL/min under 0.5 MPa
- Weight: 28g ±1g (0.062 lbs)
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Protection rating: IP40 (Dust protected)
Precision throttle joint featuring 360° rotatable collar for tool-free adjustment. The dual-scale flow indicator (L/min and %) enables visual flow rate monitoring. Integrated check valve prevents reverse flow during pressure fluctuations. Compatible with air, inert gases, and vacuum systems.
- Pneumatic cylinder speed regulation in assembly lines
- Vacuum generator flow control in packaging systems
- Air blow nozzle adjustment in CNC machining centers
- Medical gas flow modulation in ventilator systems
- Process air balancing in semiconductor manufacturing
Installation protocol:
Apply 1.5-2.0 N·m torque during installation. For vertical mounting,
position adjustment knob upward. Perform flow calibration after
50-100 operation cycles using included hex key (1.5mm).
| Property | Property Value |
|---|---|
| sku | X-APAM10 |
