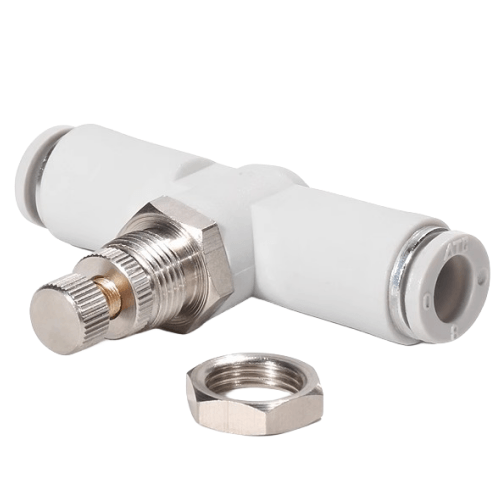

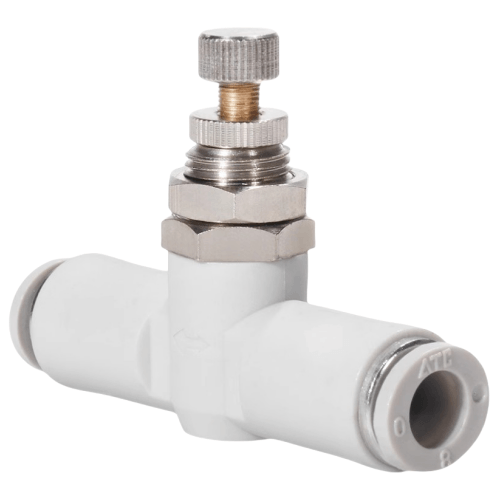

AirTAC X-APAM4 Throttle-Type Tube Fitting Detailed Specifications

• Model: X-APAM4
• Type: Throttle-type compression fitting (male thread)
• Body material: Nickel-plated brass (C3604)
• Seal material: NBR (Nitrile) with PU flow control ring
• Thread standard: Metric (M5×0.8)
• Tube compatibility: Ø4mm polyurethane/nylon tubing
• Pressure rating: 0.05–1.0 MPa
• Operating temperature: -5℃ to 80℃ (with NBR seals)
• Flow adjustment range: 20–200 L/min (ANR)
• Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
• Torque limit: 0.7–1.2 N·m (tube insertion)
• Weight: 18g ±0.5g
• Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
• Surface treatment: Chromate conversion coating

Precision throttle fitting with integrated flow control mechanism, featuring a unique spiral groove design for linear flow adjustment. The 45° conical sealing surface ensures zero-leak performance under vibration. Compatible with ISO 8434-1 standards for pneumatic systems.

Key Applications:

• Speed regulation of pneumatic cylinders in assembly lines
• Air cushion damping control in shock absorbers
• Precision air flow adjustment for medical analyzers
• Packaging machine actuator synchronization
• Robotic end-effector pressure balancing

Installation protocol: Cut tube ends square (max 0.5° bevel), insert fully until tube bottom-out, then tighten 1/4 turn past hand-tight. Perform flow calibration using clockwise rotation for reduced flow (max 270° adjustment).

Maintenance: Replace sealing elements every 500,000 cycles or 2 years (whichever comes first). Use AirTAC SPG-04 silicone grease for re-lubrication. Avoid IPA cleaning - use pneumatic line filters with 5μm rating.
