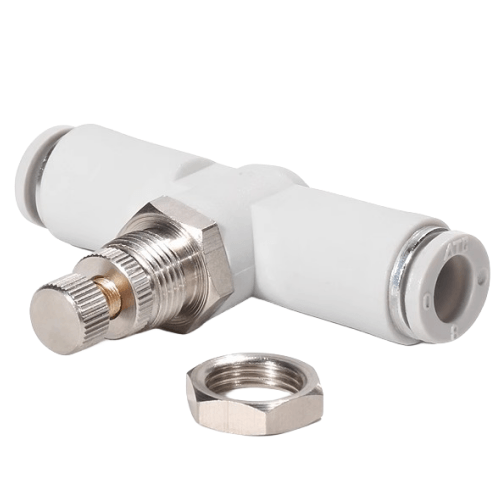

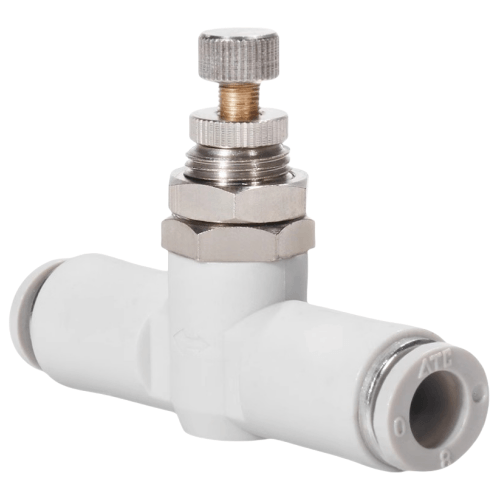

Airtac X-APAM Tube Throttle Type Connector X-APAM8
AirTAC X-APAM8 Throttle-Type Tube Fitting Specifications
- Model: X-APAM8
- Type: Adjustable throttle fitting with integrated flow control
- Port size: M5×0.8 thread (metric)
- Material: Nickel-plated brass body
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Flow adjustment range: 0–300 L/min (ANR)
- Seal material: FKM fluorocarbon rubber
- Leakage rate: ≤3 bubbles/min (ISO 6952)
- Protection rating: IP40 (dust protected)
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 18mm(W) × 18mm(H)
Precision flow control fitting featuring 210° rotary adjustment knob with click-stop detents. Includes integrated O-ring groove for secure tube retention (compatible with φ8mm OD polyurethane/nylon tubing). Anti-vibration design maintains set flow rate under pressure fluctuations. Corrosion-resistant plating ensures durability in humid environments.
- Pneumatic cylinder speed regulation
- Vacuum generator flow optimization
- Medical gas flow control systems
- Packaging machine actuator timing adjustment
- Laboratory pneumatic instrument calibration
Installation tip:
Use two 10mm wrenches during assembly - one to hold base fitting
and another to tighten lock nut. Avoid overtightening beyond 1.5Nm
torque to prevent thread deformation.
- Full closure: Rotate knob clockwise until resistance felt
- Fine adjustment: Each detent click ≈5% flow change
- Visual indicator: Red marker shows relative flow position
| Property | Property Value |
|---|---|
| sku | X-APAM8 |
