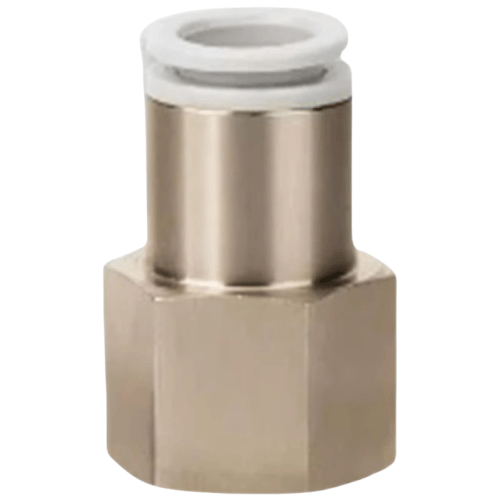

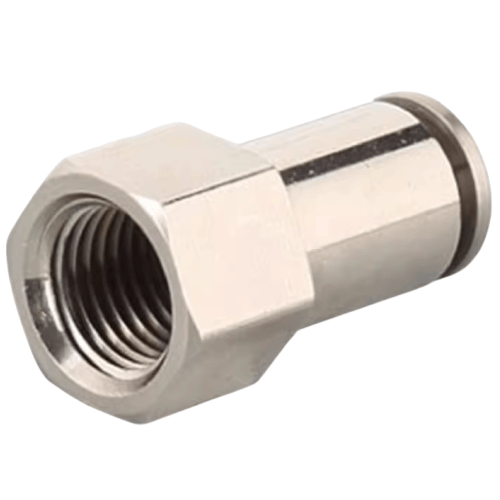

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1001
$5.75
Regular price
$13.25
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCFT1001
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCFT1001 Brass Straight Threaded Fitting Specifications
- Model: X-APCFT1001
- Type: Full-brass female threaded straight connector
- Material: Lead-free brass CW617N (nickel-plated)
- Thread Standard: Metric (M) / BSPP / NPT optional
- Primary Thread Size: M5×0.8 (standard), other sizes available up to M12×1.5
- Pressure Rating: 0.5-1.5 MPa (72-217 PSI)
- Temperature Range: -20℃ to 100℃ (-4°F to 212°F)
- Surface Roughness: Ra ≤1.6μm at sealing surfaces
- Installation Torque: 1.5-2 Nm (13-18 lbf·in)
- Weight: 24g ±0.5g
- Dimensions: 30mm(L) × 10mm(Dia) × 10mm(Hex)
- Compatibility: Works with PU/Nylon/PVC tubing (4-6mm OD)
- Certification: RoHS 2.0 compliant
Precision-machined brass connector featuring dual-sealing structure with integrated O-ring groove (NBR seal included). Anti-vibration design maintains stable connections in high-frequency pneumatic systems. Electroless nickel plating provides corrosion resistance in humid environments.
Typical Applications:
- Pneumatic valve manifold block interconnections
- Compressed air distribution in CNC machines
- Vacuum system plumbing for semiconductor manufacturing
- Hydraulic test bench instrumentation
- Beverage dispensing system fluid connections
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Use backup wrench on hex body during tightening to prevent
tube distortion. Pressure test at 1.25× working pressure
after installation.
| Property | Property Value |
|---|---|
| sku | X-APCFT1001 |
