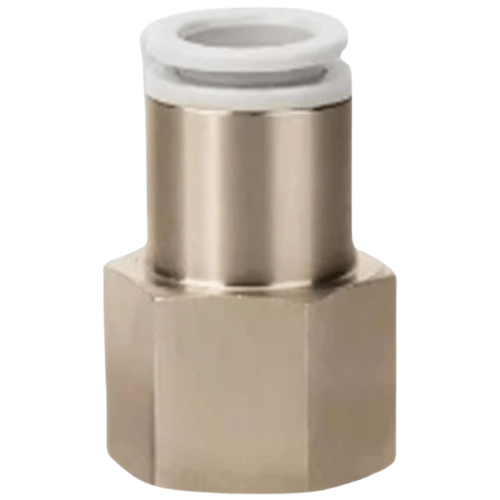

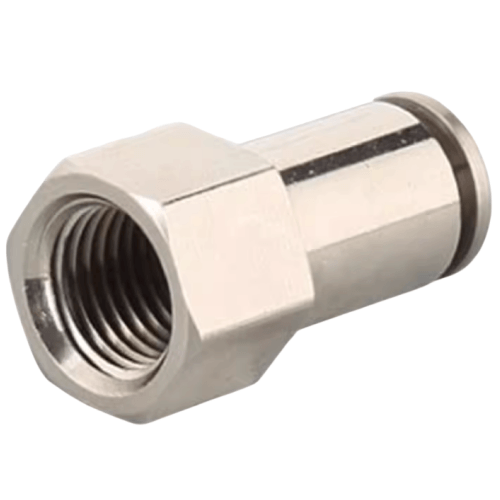

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1203
AirTAC X-APCFT1203 Full Brass Female Threaded Straight Connector Specifications
- Model: X-APCFT1203
- Type: Straight through connector (female thread both ends)
- Material: Lead-free brass body (RoHS compliant)
- Thread standard: Metric parallel thread (ISO 228-1)
- Thread size: M12×1.5 (internal threads on both ports)
- Pressure rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 120℃ (static) / -5℃ to 80℃ (dynamic)
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Seal material: NBR O-ring (optional FKM available)
- Weight: 48g ±2g
- Dimensions: 42mm(L) × 16mm(W) × 16mm(H)
- Torque limit: 25-30 N·m (installation torque)
- Compatibility: Works with ISO 8434-1/DIN 2353 metric fittings
High-pressure brass connector featuring dual female threads with precision-machined sealing surfaces. The hex-shaped body allows secure wrench tightening, while the nickel plating provides corrosion resistance in humid environments. Designed for zero-leak performance in compact pneumatic/hydraulic circuits.
- Modular pneumatic manifold assemblies
- CNC machine tool lubrication systems
- Compressed air distribution networks
- Hydraulic test bench connections
- Industrial robot end-effector plumbing
Installation note:
Apply thread sealant to male threads only (not required for tapered threads).
Avoid overtightening - use torque wrench for precise installation.
Compatible with PTFE tape when used with non-NBR seals.
