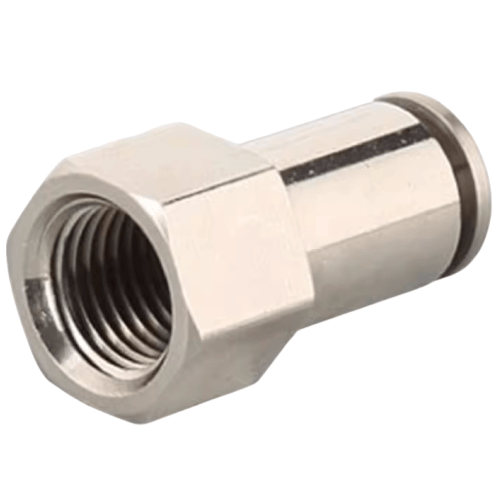

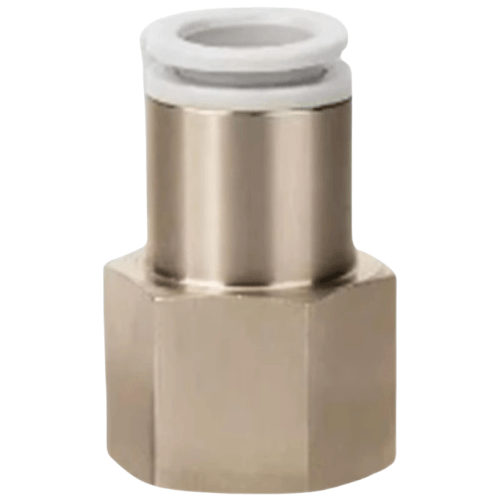

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT601
AirTAC X-APCFT601 Full-Brass Internal Thread Straight Connector Specifications
- Model: X-APCFT601
- Material: Lead-free brass (RoHS compliant)
- Thread standard: Metric internal thread (M5×0.8)
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Burst pressure: ≥4.5 MPa (653 PSI)
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroplated nickel (5-8μm thickness)
- Flow coefficient (Cv): 0.15
- Leakage rate: ≤1×10⁻⁴ Pa·m³/s under 0.5 MPa
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 18.5±0.3g
- Dimensions: 22mm(L) × 12mm(W) × 12mm(H)
- Certifications: ISO 9001, ISO 14001, CE
Precision-machined brass connector featuring corrosion-resistant nickel plating and double O-ring sealing (NBR material). The compact hexagonal body design allows tool-free hand tightening while maintaining 360° rotation capability. Includes integrated dust protection caps for unused ports.
- Pneumatic cylinder port connections
- Air preparation unit piping
- Industrial robot end-effector air supply
- Medical device pneumatic circuits
- Laboratory instrumentation gas lines
Installation guidelines:
Apply thread sealant (PTFE tape or liquid sealant) to external threads only.
Tighten to 1.2-1.5 N·m torque. Avoid overtightening - maximum rotation angle
after contact with sealing surface should not exceed 270°.
| Property | Property Value |
|---|---|
| sku | X-APCFT601 |
