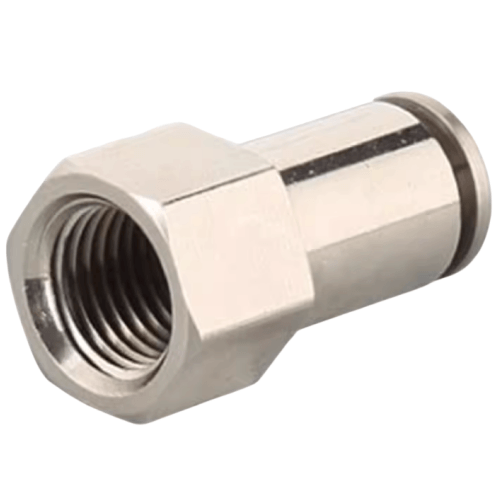

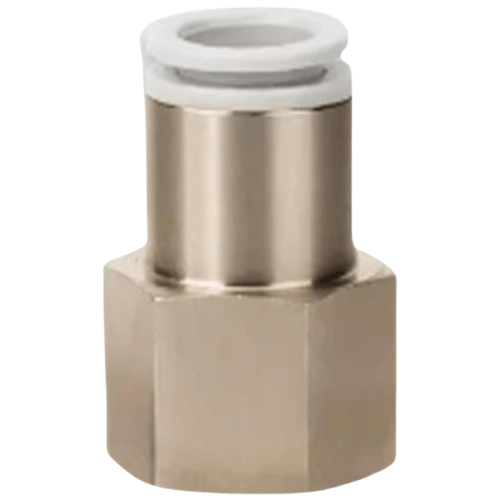

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT602
$5.18
Regular price
$12.68
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCFT602
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCFT602 Full Brass Female Thread Straight Fitting Specifications
- Model: X-APCFT602
- Type: Straight through connector (female thread both ends)
- Material: Lead-free brass (CuZn39Pb3), chrome-plated surface
- Thread Standard: Metric parallel thread (M5×0.8 to M12×1.25 available)
- Nominal Pressure: 1.5 MPa (217 psi) maximum
- Burst Pressure: ≥4.5 MPa (652 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Seal Material: NBR (Nitrile) O-rings (FKM optional)
- Thread Engagement: 6 full turns minimum
- Surface Hardness: HV0.3 130-250 (chrome layer)
- Weight: 28g ±1g
- Dimensions: 40mm(L) × 12mm(OD) × M8×1.25 thread
- Flow Rate: 300 NL/min (at 0.5 MPa pressure drop)
- Compliance: RoHS 2.0, REACH SVHC 219 substances
- Packaging: 50pcs/box, anti-corrosion paper wrapping
Premium brass pneumatic fitting with precision-machined threads and triple-layer chrome plating for corrosion resistance. Features a 360° rotatable design for flexible hose routing alignment. The internal flow path is polished to Ra0.8μm surface finish to minimize turbulence.
Typical Applications:
- High-vibration pneumatic tool connections
- CNC machine tool coolant line junctions
- Automated assembly line air cylinder manifolds
- Food processing equipment (requires optional FKM seals)
- Laboratory vacuum system interfaces
Installation protocol:
Apply thread sealant (PTFE tape or liquid) to male threads only.
Tighten with 1.2-1.8 N·m torque using crowfoot wrench.
Avoid overtightening - maximum 2 full turns after hand-tight.
Compatibility note:
Not recommended for oxygen systems or acetylene gas applications.
For hydraulic fluids, verify seal material compatibility with media.
| Property | Property Value |
|---|---|
| sku | X-APCFT602 |
