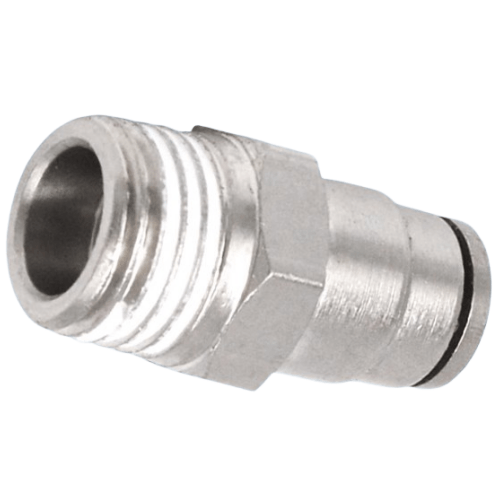

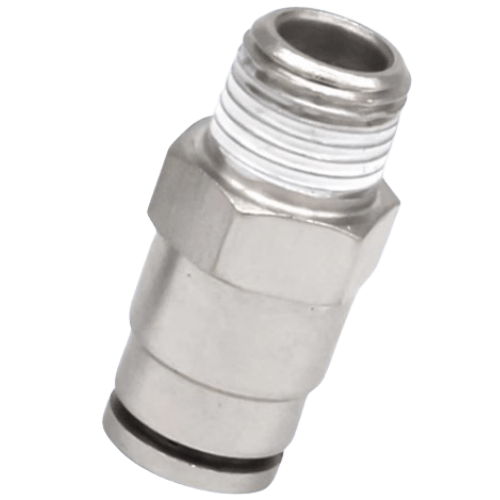

Airtac X-APCT Full Copper Straight Thread Connector X-APCT602
AirTAC X-APCT602 Full Brass Threaded Straight Connector Specifications
- Model: X-APCT602
- Type: Through-type straight connector (male to male)
- Material: C3604 Free-cutting brass (lead-free compliant)
- Thread Standard: BSPP (G) Thread
- Thread Size: G1/8 (1/8" BSPP parallel thread)
- Port Configuration: M-M (Male thread on both ends)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electro-polished with anti-oxidation coating
- Tightening Torque: 1.0-1.5 N·m recommended
- Weight: 68g ±2g
- Dimensions: 60mm(L) × 10mm(OD) × 10mm(ID) (Through-hole diameter)
- Compliance: RoHS 2.0, REACH SVHC
- Vibration Resistance: 10-2000Hz, 5G acceleration
A high-conductivity brass connector featuring precision-machined threads with 30% thicker wall structure compared to standard fittings. The electroless nickel plating ensures corrosion resistance in humid environments while maintaining optimal airflow characteristics (CV value: 0.08). Designed for zero-leak performance with dual O-ring compression design (not included).
- Pneumatic system branch line connections
- Instrumentation air supply interfaces
- CNC machine tool coolant line junctions
- High-cycle automation equipment manifolds
- Hydraulic test bench plumbing systems
- Compressed air dryer unit piping
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise (viewed from port end) on male threads.
Use dual wrenches with counter-rotation technique during assembly to prevent
tube distortion. Maximum angular misalignment tolerance: ≤3°.
| Property | Property Value |
|---|---|
| sku | X-APCT602 |
