Airtac X-APCVC Straight Check Valve Adapter X-APCVC401

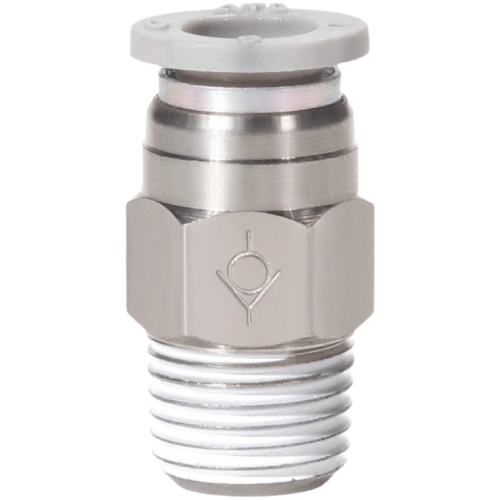

AirTAC X-APCVC401 Straight-Through Type One-Touch Fitting Detailed Specifications
- Model: X-APCVC401
- Type: Straight-through unidirectional quick connector
- Thread standard: Metric (M5×0.8) with G1/8 adaptor compatibility
- Material: Lead-free brass (C3771) with electroless nickel plating
- Seal material: HNBR (Hydrogenated Nitrile) O-ring
- Operating pressure: 0.05–1.0 MPa (7–145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Temperature range: -20℃ to 80℃ (continuous), peak 120℃ (intermittent)
- Flow rate: 250 NL/min at 0.5 MPa
- Tube compatibility: Ø4mm polyurethane/nylon tubing
- Vibration resistance: 10–55Hz, 1.5mm amplitude
- Weight: 28g ±0.5g
- Dimensions: 38mm(L) × 16mm(W) × 16mm(H)
- IP rating: IP40 (dust protected)
- Cycle life: ≥50,000 connect/disconnect cycles
Precision-engineered pneumatic quick-connect coupling featuring zero-leak push-to-connect functionality. The 45° tube retention teeth provide vibration-resistant sealing while allowing single-hand operation. Nickel-plated surface resists corrosion in humid environments. Internal check valve prevents air backflow during disconnection.
- Modular pneumatic assembly lines requiring frequent tool changes
- Robotic end-effector pneumatic connections
- CNC machine tool coolant line quick disconnects
- Semiconductor cleanroom equipment air supply
- Mobile hydraulic test bench connections
Installation protocol:
Always insert tubes perpendicularly until audible click. For gas applications,
apply thin silicone grease (ASG-46 certified) to O-ring before initial use.
Maximum angular misalignment tolerance: 3°.
Compatibility note:
Not suitable for phosphate ester hydraulic fluids or chlorinated solvents.
Always depressurize system before disconnection.
