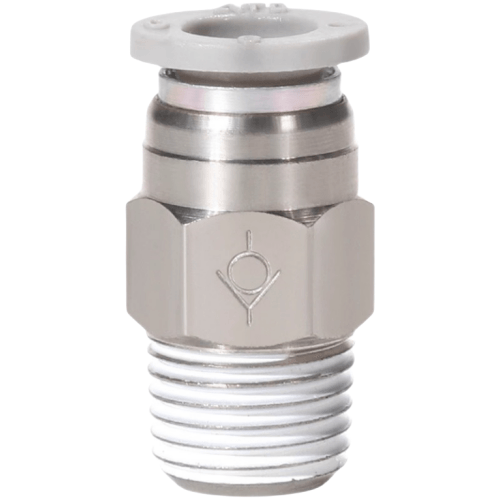

Airtac X-APCVC Straight Check Valve Adapter X-APCVC602
AirTAC X-APCVC602 Straight-Through Type One-Touch Fitting Specifications
- Model: X-APCVC602
- Type: Straight-through unidirectional quick connector
- Body material: Nickel-plated brass (ISO 1179-1 compliant)
- Seal material: HNBR (Hydrogenated Nitrile) with EPDM backup ring
- Port size: 1/8" BSPP (G1/8) female threads
- Operating pressure: 0.05-1.0 MPa (7-145 PSI)
- Burst pressure: ≥3.0 MPa (435 PSI)
- Temperature range: -20℃ to 120℃ (continuous use)
- Flow coefficient (Cv): 0.45
- Tube compatibility: Ø6mm (OD) polyurethane/nylon tubing
- Leakage rate: ≤3 bubbles/min under 0.5 MPa pressure
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 28g ±1g
- Dimensions: 34mm(L) × 18mm(W) × 18mm(H)
- Certification: RoHS compliant, REACH SVHC-free
Precision-engineered push-to-connect fitting featuring a unique 45° internal check valve design for positive flow direction control. The dual-locking collar mechanism ensures secure tube retention while allowing single-hand operation. Hard chrome-plated internal components provide exceptional wear resistance in high-cycle applications.
- Pneumatic circuit branch line connections
- Vacuum system component integration
- Medical gas equipment manifolds
- Automated packaging machine tooling
- Semiconductor manufacturing air lines
- Robotic end-effector pneumatic controls
Installation protocol:
Ensure tube end is cut square and deburred before insertion.
Full engagement is achieved when the tube reaches the internal depth stop (audible click).
For maintenance, depress the release collar completely while withdrawing the tube.
| Property | Property Value |
|---|---|
| sku | X-APCVC602 |
